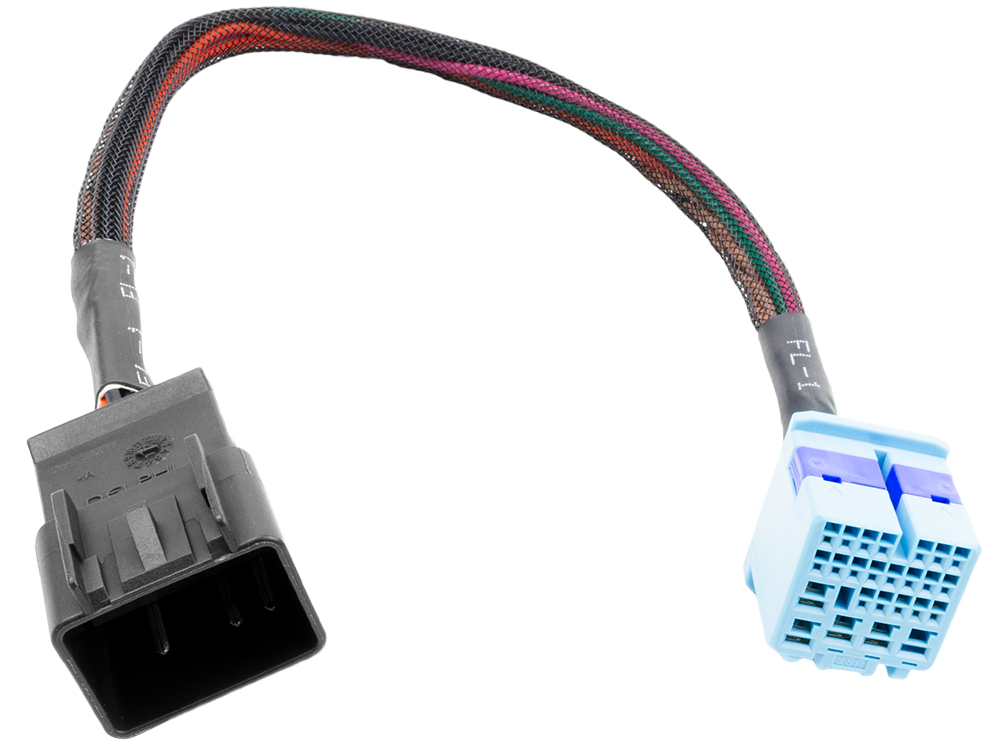

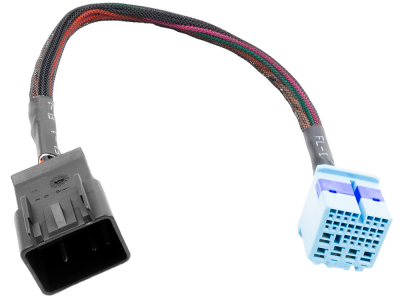

GM Body Control Module BCM Programming Harness
for 2007-2014 GM Trucks Vans SUVs Select Cars
Part #: 100-01034
Dimensions
- Weight: 2 Ounces
This Body Control Module (BCM) programming harness is to be used with any of our OBD2 switch assemblies to reprogram 2007-2014 GM Gas Diesel Trucks Vans SUVs and Select Cars BCMs outside of the vehicle.
We've identified the following GM part numbers as compatible BCMs: 20815898, 20864767, 20935349, 20921435, 22860591.
| OBD2 Switch Assembly Pass-Through Harness ECU harnesses connect to the OBD2 switch assembly through a short pass-through harness. This 2007-2014 GM Gas Diesel Trucks Vans SUVs and Select Cars BCM programming harness requires Pass-Through Harness for GM EFI# 100-01032. Pass-Through Harness sold separately. IMPORTANT! BCMs Require CAN Termination To enable OBD2 CAN bus communication, this BCM requires CAN termination. Use Y-Splitter Harness for GM EFI# 100-01031. If no CAN terminating ECU is connected on the benchtop, use OBD2 CAN Termination Harness, EFI# 100-01033. | CLICK TO ENLARGE IMAGE IN NEW WINDOW  |
| 2007-2014 GM Gas Diesel Trucks Vans SUVs and Select Cars BCM - SUPPORTED VEHICLES * | |||
|---|---|---|---|
| YEAR | MAKE | MODEL | ENGINE |
| 07-14 | GM | Trucks, Vans, SUVs, and Select Cars Gasoline/Diesel | N/A |
| * While this BCM programming harness is compatible with many 2007-2014 GM Gas Diesel Trucks Vans SUVs and Select Cars BCMs listed above, there may be many BCM service numbers. The BCM service number should match the vehicle service calibration to avoid potential damage to the BCM. Caution should be taken to ensure BCM/program compatibility before service programming. | |||
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-01072 | Pass-Through Harness OBD-II Programming for use with BenchForce™ PowerBlock Switch Assemblies | – | $0.00 | Item is not For Sale |
|
100-01031 | Y-Splitter Harness for OBD-II Programming for use when adding an additional ECU on the bench | – | $0.00 | Item is not For Sale |
|
140-00019 | BenchForce™ PowerBlock II 12v Switch Assembly for OBD-II Programming | – | $0.00 | Item is not For Sale |
