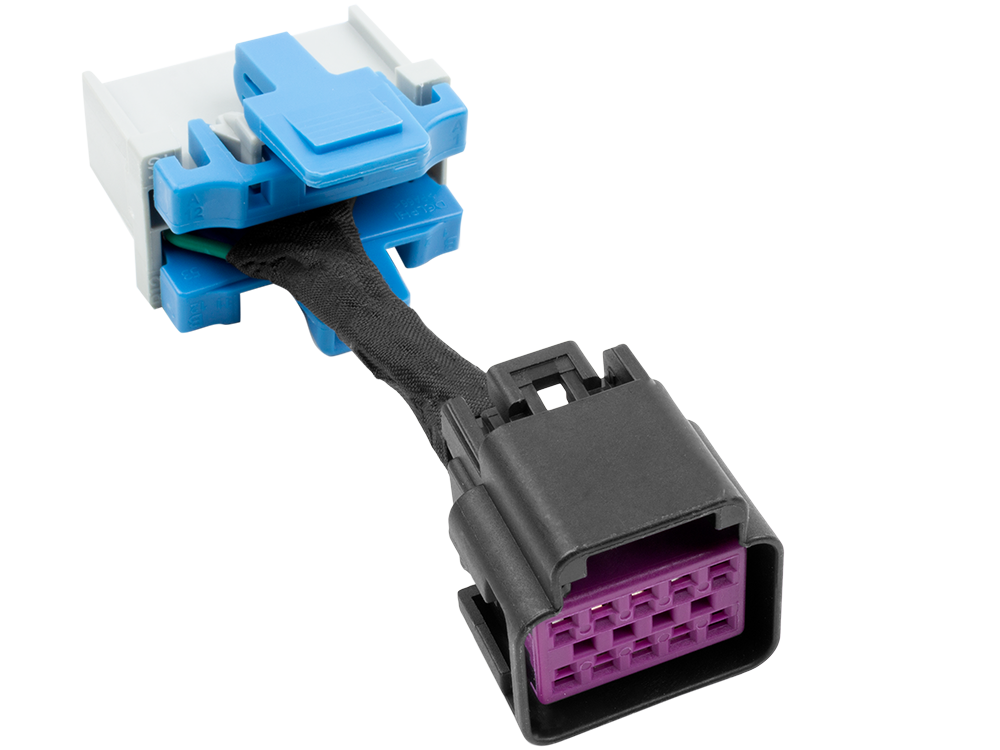

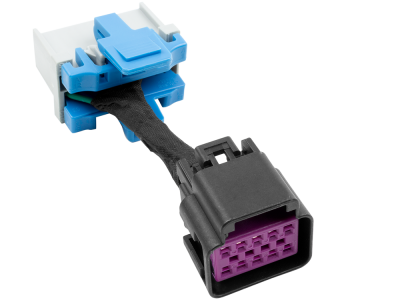

Pass-Through Harness OBD-II Programming
for use with BenchForce™ PowerBlock Switch Assemblies
Part #: 100-01072
Dimensions
- Weight: 5 Ounces
Supporting Documents
This pass-through harness is required for OBD-II programming when using BenchForce™ PowerBlock switch assemblies.
- The 24 pin connector end plugs into any of our PowerBlock switch assemblies.
- The 10 pin connector end plugs into any BenchForce™ OBD-II ECU programming harness.
- The 10 pin connector end may alternatively plug into Y-Splitter OBD-II harness P/N 100-01031. Y-Splitter harness is only necessary when adding an additional ECU on the bench.
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
140-00018 | BenchForce™ PowerBlock I 12v Switch Assembly for OBD-II Programming | – | $0.00 | Item is not For Sale |
|
140-00019 | BenchForce™ PowerBlock II 12v Switch Assembly for OBD-II Programming | – | $0.00 | Item is not For Sale |
|
140-00020 | BenchForce™ PowerBlock III 12v Switch Assembly for OBD-II Programming | 1 | $0.00 | Item is not For Sale |
|
100-01031 | Y-Splitter Harness for OBD-II Programming for use when adding an additional ECU on the bench | – | $0.00 | Item is not For Sale |
