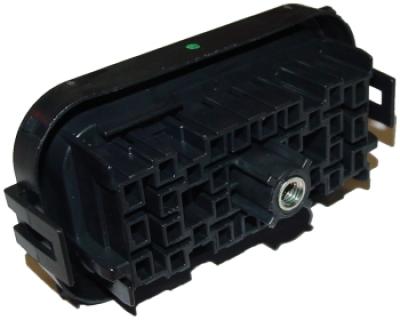

Aptiv (Delphi) 30 Way Black Metri-Pack 280 480 Sealed Male Junction System Connector
Part #: 100-00417
Inventory: -1
Attributes
- COLOR: BLACK
- CAVITY COUNT: 30
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: METRI-PACK
- SERIES: 280, 480, 630, MIXED, JUNCTION
Dimensions
- Weight: 1 Ounce
Lead Time: We have a few in stock. Otherwise; Global Shortage.
This connector is to be used only as a part of the 30 wire junction system. This connector accepts 6 Metri-Pack 480 series terminals and 24 Metri-Pack 280 series terminals. The green connector seal is not included as part of this connector assembly, but can be purchased separately if your installation requires a seal on both sides of the junction system. Two blue secondary locks (100-00419) are required, but not included.
Mating Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00416 | Aptiv (Delphi) 30 Way Black Metri-Pack 280 480 Sealed Female Junction System Connector | – | $18.00 |
Dress Cover
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00422 | 30 Cavity Junction System Dress Cover | – | $5.00 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00419 | DELPHI 30 Way BLUE Junction System Comb TPA | – | $1.00 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00149 | Aptiv (Delphi) Metri-Pack 280 Male Sealed Tin (Sn) 20-18 AWG Terminal | 10 | $0.40 | |
|
100-00150 | Aptiv (Delphi) Metri-Pack 280 Male Sealed Tin (Sn) 14-12 AWG Terminal | 10 | $0.40 | |
|
100-00156 | Aptiv (Delphi) Metri-Pack 480 Male Sealed Tin (Sn) 16-14 AWG Terminal | 10 | $0.35 | |
|
100-00157 | Aptiv (Delphi) Metri-Pack 480 Male Sealed Tin (Sn) 12 AWG Terminal | 10 | $0.35 |
Cable Seals
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00212 | Delphi Metri-Pack 280 Cavity Plug | 5 | $0.45 | |
|
100-00213 | Delphi Metri-Pack 480 Cavity Plug | 5 | $0.45 |
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00421 | 30 Way Junction System Shroud | – | $21.50 |
