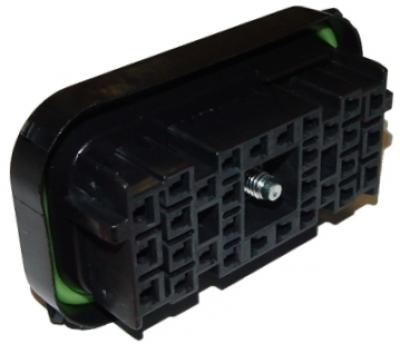

Aptiv (Delphi) 30 Way Black Metri-Pack 280 480 Sealed Female Junction System Connector
Part #: 100-00416
Attributes
- COLOR: BLACK
- CAVITY COUNT: 30
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: METRI-PACK
- SERIES: 280, 480, 630, MIXED, JUNCTION
Dimensions
- Weight: 1 Ounce
This connector is to be used only as a part of the 30 wire junction system. This connector accepts 6 Metri-Pack 480 series terminals and 24 Metri-Pack 280 series terminals. The assembly bolt and green connector seal (100-00418) are included. Two white secondary locks (100-00420) are required, but not included.
Mating Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00417 | Aptiv (Delphi) 30 Way Black Metri-Pack 280 480 Sealed Male Junction System Connector | – | $40.00 |
Dress Cover
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00422 | 30 Cavity Junction System Dress Cover | – | $5.00 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00420 | DELPHI 30 Way WHITE Junction System Comb TPA | – | $1.00 |
Terminals
Cable Seals
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00212 | Delphi Metri-Pack 280 Cavity Plug | 5 | $0.45 | |
|
100-00213 | Delphi Metri-Pack 480 Cavity Plug | 5 | $0.45 |
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00421 | 30 Way Junction System Shroud | – | $21.50 |
Replacement Parts
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00418 | 30 Cavity Junction System Seal | – | $4.00 |
