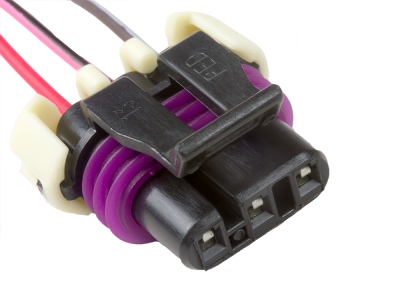

Camshaft Position Sensor Connector Pigtail
for Gen IV LS2 LS3 LS7
Part #: 100-00721
Attributes
- Engine Type: LS (24X), LS (58X)
- Wire Count: 3
- Connector Color: BLACK
- Application: IGNITION
Dimensions
- Weight: 1 Ounce
This pigtail is used with the camshaft sensor mounted in the front of Gen IV LS-series engines. The wire color configuration is incorrect for Gen III LS-series engines with camshaft sensor behind the intake manifold. Also used with EFI 24x/58x conversions. This connector pigtail will not connect to the Gen IV LS-series camshaft position sensor harness. To connect to the GM timing cover harness, use our Harness Mating connector pigtail, P/N 100-00875.
Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-01106 | Connector Kit for GM Gen IV LS-Series Camshaft Position Sensor (CMP) Delphi Metri-Pack 150 Parts to build your own connector assembly | – | $7.50 | |
|
100-00041 | Aptiv (Delphi) 3 Way Black Metri-Pack 150 Sealed Female Connector | – | $5.75 |
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00721 | Camshaft Position Sensor Connector Pigtail for Gen IV LS2 LS3 LS7 | – | $12.00 | |
|
100-00875 | Camshaft Position Sensor Harness Mating Connector Pigtail for Gen IV LS2 LS3 LS7 | – | $12.00 |
