TAC to Pedal Harness
for 2005 GM Trucks
Part #: 100-00977
Attributes
- Application: MODULE, ACCELERATOR PEDAL
- Engine Type: LS (24X)
Dimensions
- Weight: 5 Ounces
Obsolete. Replaced by p/n 100-00643.

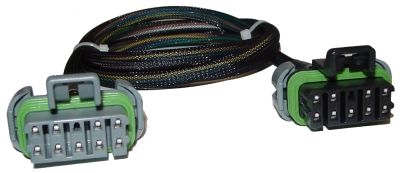

This TAC module to pedal harness is for 2005 GM trucks. There are six wires in this assembly (not represented by product image) to provide for two of the three sensors within the Accelerator Pedal Position (APP) sensor housing (as the 2003-up TAC modules only use two sensors).
Standard length is 4ft (which is not necessarily the length as is found in a 2005 truck). This harness was designed for aftermarket use when swapping an LS engine into a different vehicle. This harness does not include a firewall grommet.
Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00065 | Aptiv (Delphi) 10 Way Black Metri-Pack 150 Sealed Female Connector | – | $7.00 | |
|
100-00066 | Aptiv (Delphi) 10 Way Medium Gray Metri-Pack 150 Sealed Female Connector | – | $10.00 |
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00643 | TAC to Pedal Harness for 2004-older GM Trucks | – | $45.00 | |
|
100-00644 | TAC to Pedal Harness for LS1 LS6 Corvette | – | $45.00 | |
|
100-00645 | TAC to Pedal Harness for 04-05 CTS-V | – | $45.00 |
