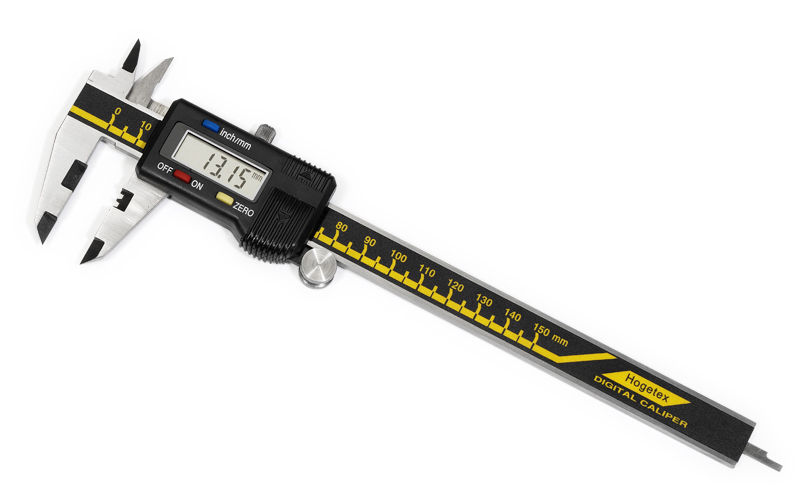

Rennsteig Electronic Digital Caliper


Part #: 690 000 1


  • Weight: 1 Pound

Lead Time: 10 Business Days

  • For exact measurement of crimp height and width
  • Specially shaped measuring surfaces provide high-precision results
  • Display accuracy 0.01 mm / 0.0005 inch
  • ISO applicable for all conventional measuring tasks
  • Large digital display, mm/inch convertible data link
  • Available in plastic box

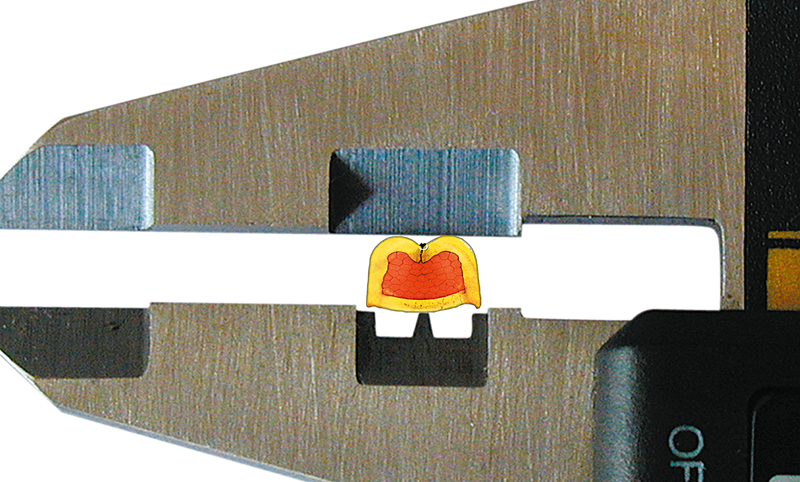

A crimp connection provides an electrical and a mechanical connection . The measure of the quality for an electrical connection is the conductivity. The measure of quality for the mechanical connection is the pull out force. Both factors, the electrical conductivity and the pull out force, depend directly on the crimp height of the conductor. Using the crimp height caliper, this is measured from the bottom of the claws to the highest point in the crimp.
