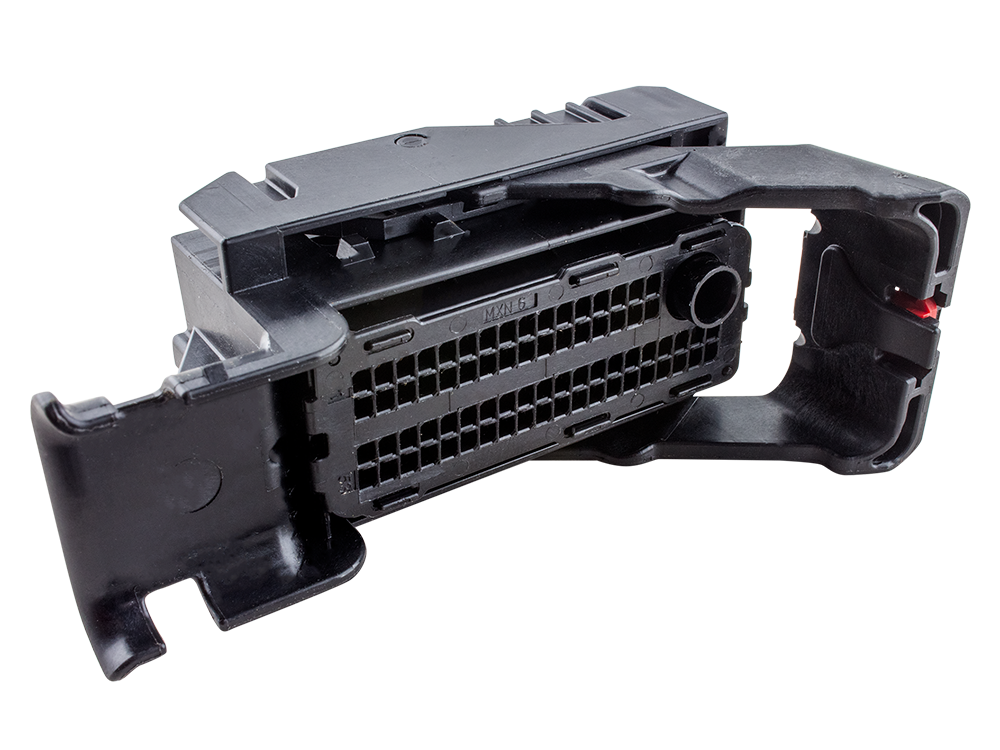

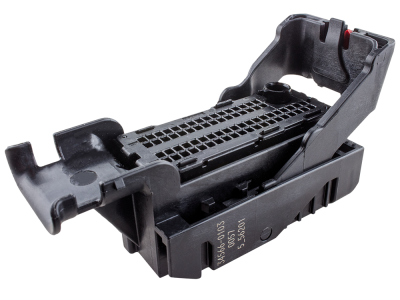

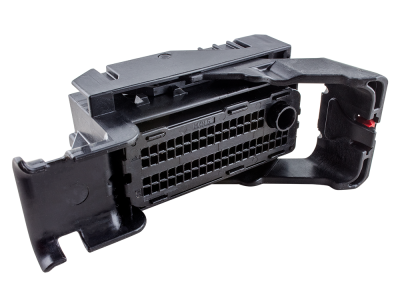

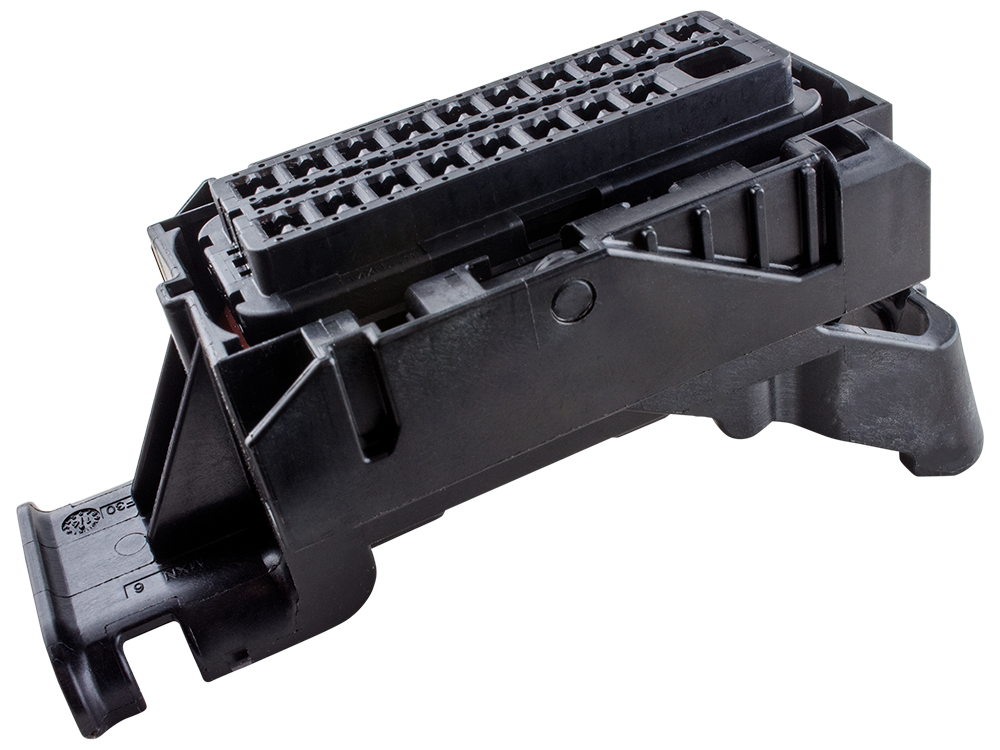

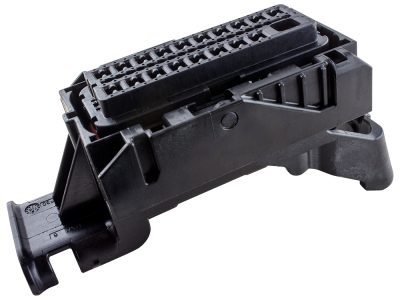

Molex 73 Way Black MX123 Sealed Female Black Bottom Wire Dress 0 Connector
Part #: 100-00099
Attributes
- COLOR: BLACK
- CAVITY COUNT: 73
- SEALED: SEALED
- MANUFACTURER: MOLEX
- FAMILY: YESC, MX123, MIXED
- SERIES: 2.8, 0.64, MIXED
Dimensions
- Weight: 51 Grams
This connector is used with the E38, E39, and E67 ECMs. The bottom has a black retainer.
Dress Cover
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00358 | Molex Dress Cover for Molex MX123 Female ECU Connectors for 73 Cavity and 80 Cavity Molex MX123 Female Connectors | – | $3.00 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00547 | Molex MX64 33467 Female Unsealed Gold (Au) 22 AWG Terminal | 10 | $0.52 | |
|
100-00354 | Molex MX64 33467 Female Unsealed Gold (Au) 20-18 AWG Terminal | 10 | $0.52 | |
|
100-00188 | Yazaki YESC 2.8 Female Sealed Tin (Sn) 18-16 AWG Terminal | 5 | $1.00 | |
|
100-00727 | Yazaki YESC 2.8 Female Sealed Tin (Sn) 16-14 AWG Terminal | 2 | $1.00 |
Cable Seals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00865 | Yazaki 2.8 x 0.8 Cable Seal RED for Cable Diameters 2.40-1.88mm | 2 | $0.75 | |
|
100-00866 | Yazaki 2.8 x 0.8 Cable Seal WHITE for Cable Diameters 3.00-2.18mm | 2 | $0.75 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00214 | Delphi Micro 64 and Molex MX123 Cavity Plug | 10 | $0.20 | |
|
100-00467 | Molex MX123 Cavity Plug | 10 | $0.25 | |
|
100-00867 | Yazaki 2.8 x 0.8 Cavity Plug | 2 | $0.75 |
