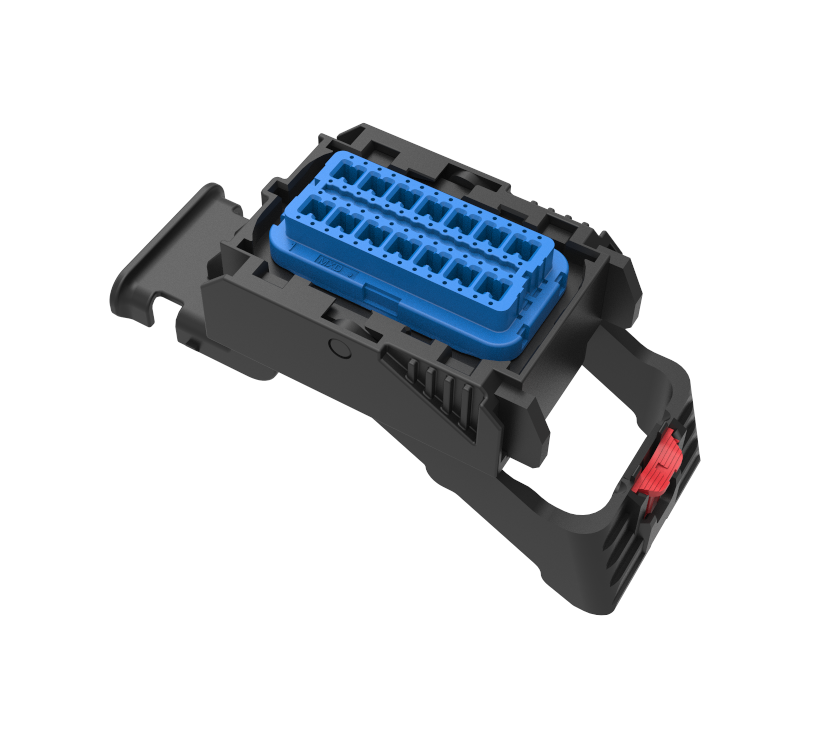

Molex 56 Way Black MX123 Sealed Female Blue Bottom Wire Dress 0 Connector
Part #: 100-00098
Attributes
- COLOR: BLACK, BLUE
- CAVITY COUNT: 56
- SEALED: SEALED
- MANUFACTURER: MOLEX
- FAMILY: MX123
- SERIES: 0.64
Dimensions
- Weight: 42 Grams

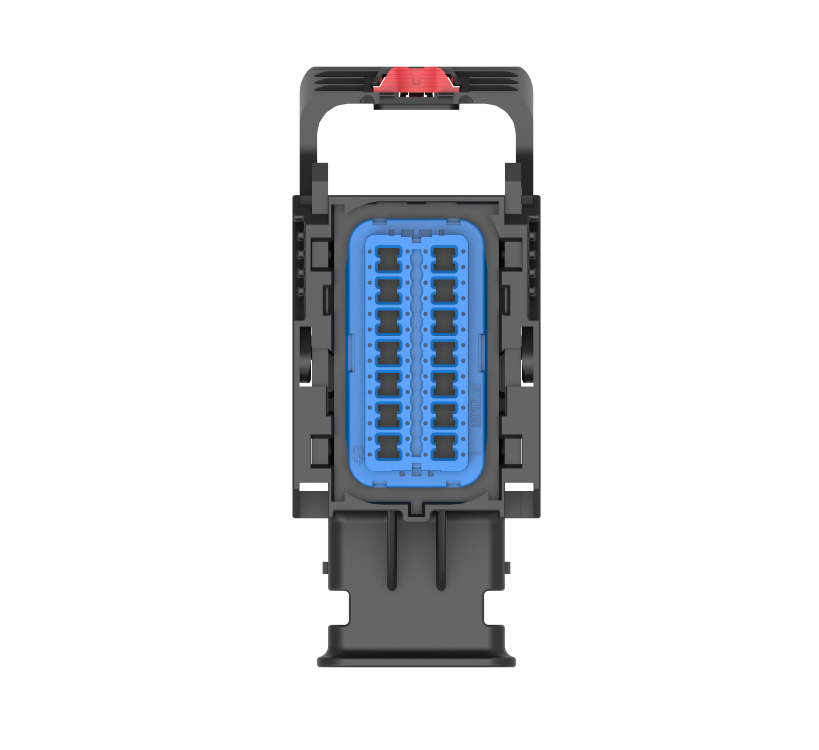

This connector is used with the E67 ECM and AEM Infinity 10 ECM. The bottom has a blue retainer.
Dress Cover
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00392 | Molex Dress Cover for Molex MX123 Female ECU Connector for 56 Cavity Molex MX123 Female Connectors | – | $3.00 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00547 | Molex MX64 33467 Female Unsealed Gold (Au) 22 AWG Terminal | 10 | $0.52 | |
|
100-00354 | Molex MX64 33467 Female Unsealed Gold (Au) 20-18 AWG Terminal | 10 | $0.52 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00214 | Delphi Micro 64 and Molex MX123 Cavity Plug | 10 | $0.20 | |
|
100-00467 | Molex MX123 Cavity Plug | 10 | $0.25 |
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
120-00291 | Aluminum Assembly Fixture for 56W Molex MX123 Connector - Blue | – | $35.00 |
