Ignition Coil Bracket Assembly (D514A)
with LS-Series Ignition Coils (GM# 12573190)
Part #: 120-00073
Dimensions
- Length: 18 inches
- Width: 12 inches
- Height: 6 inches
- Weight: 12 Pounds

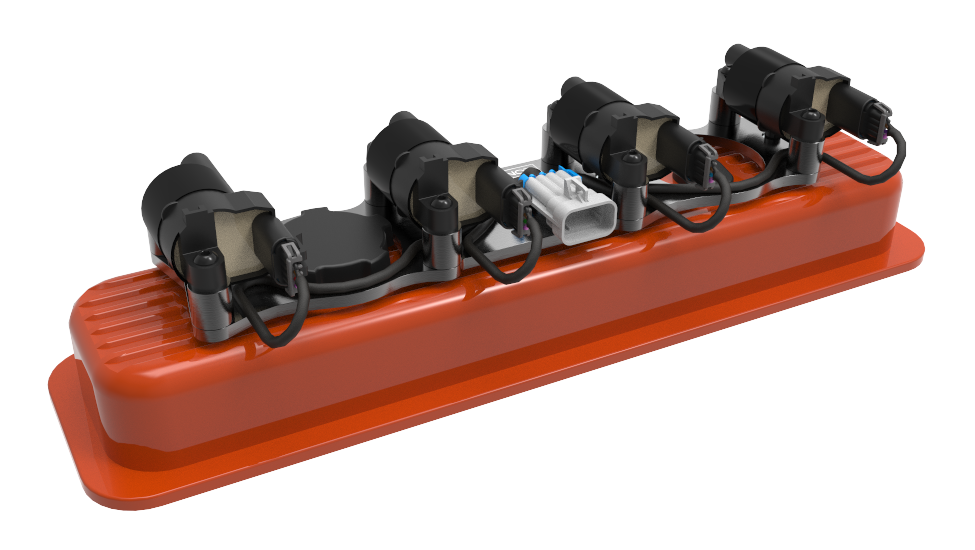

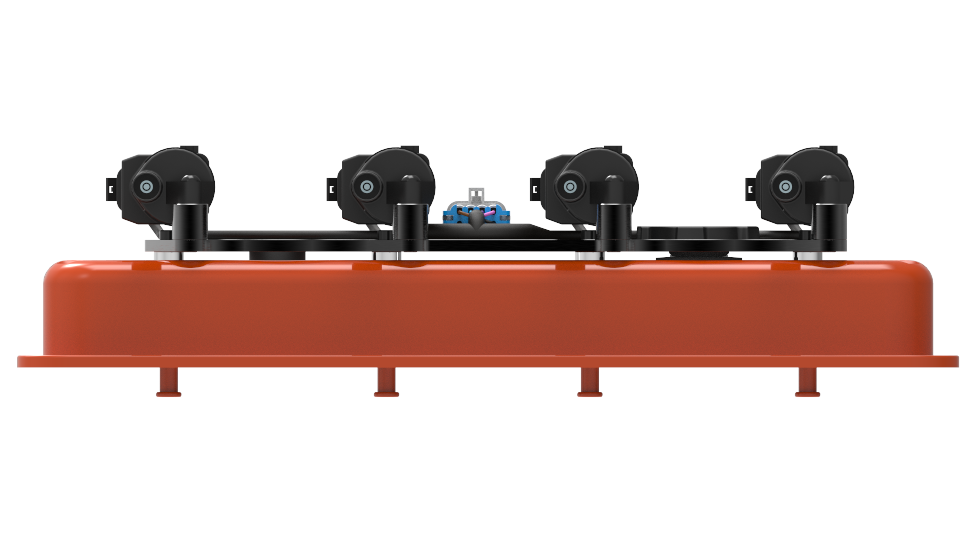

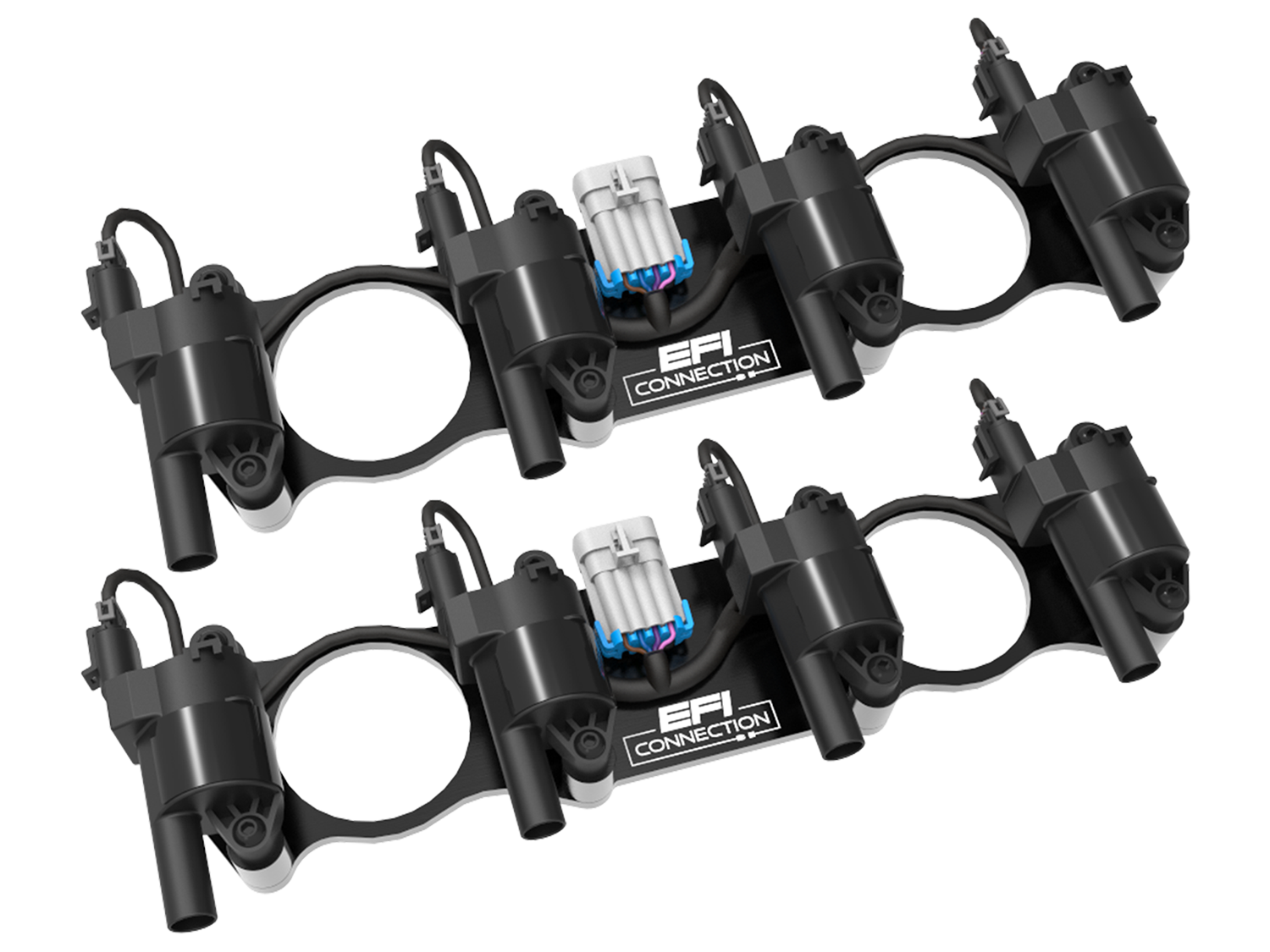

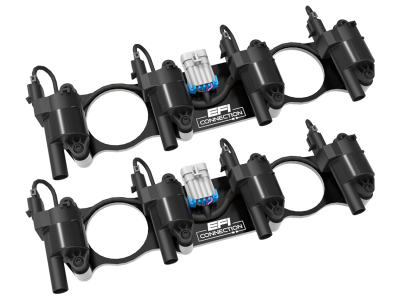

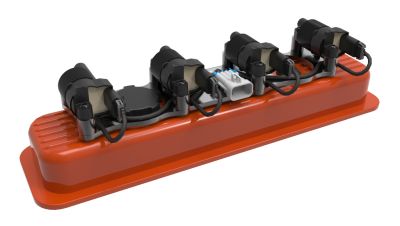

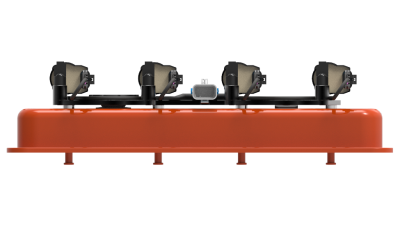

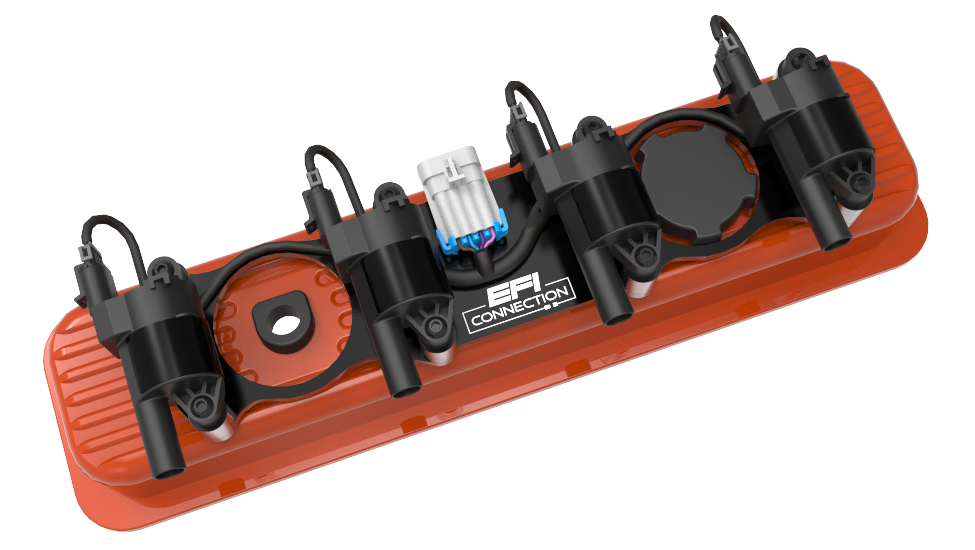

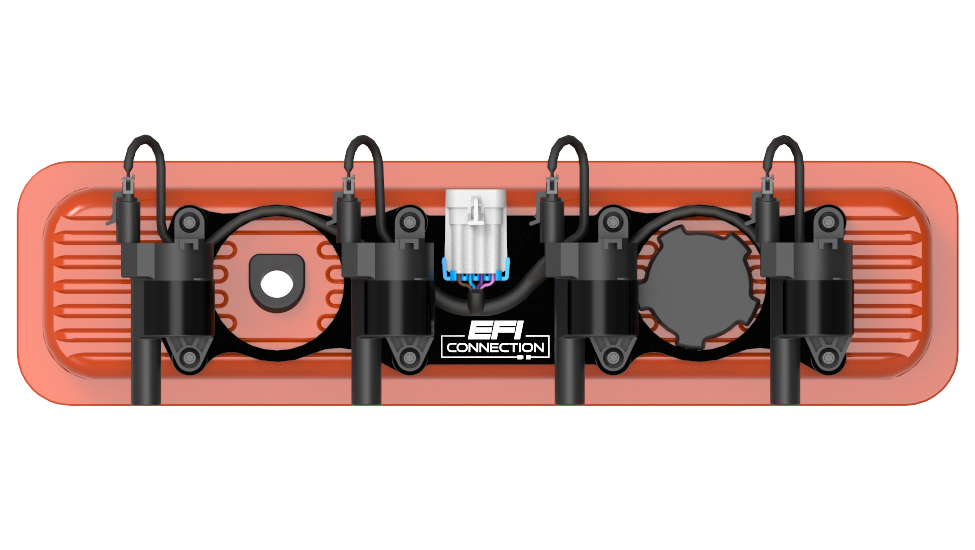

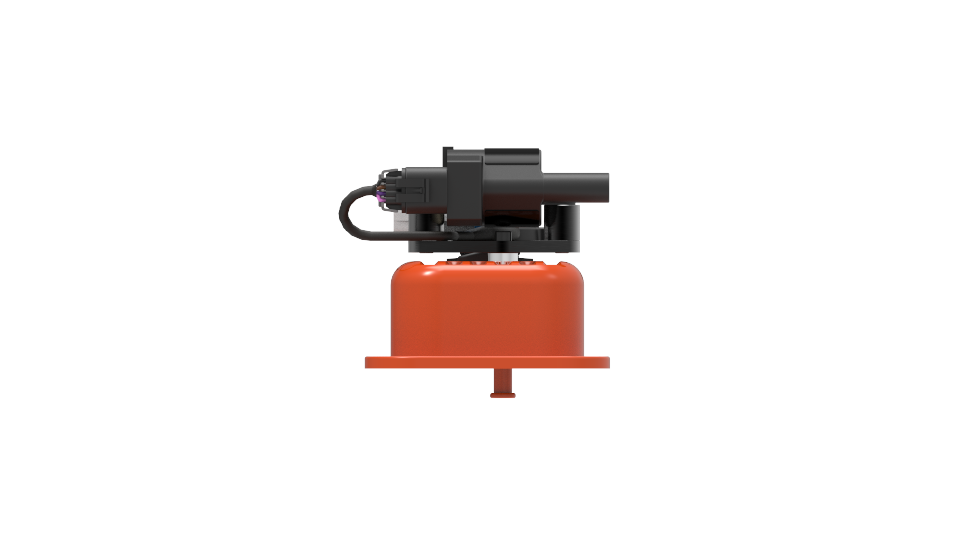

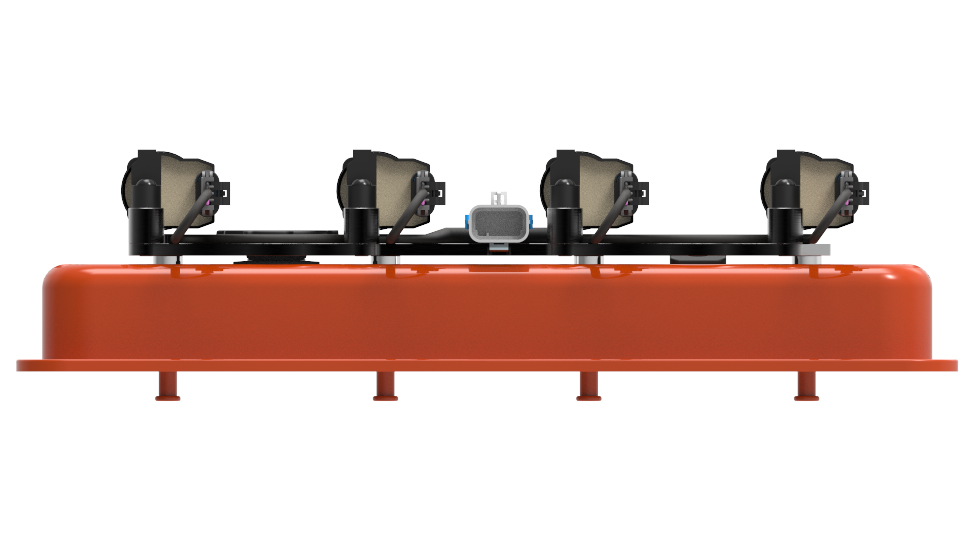

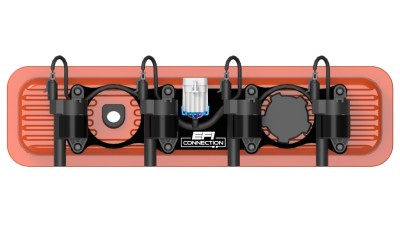

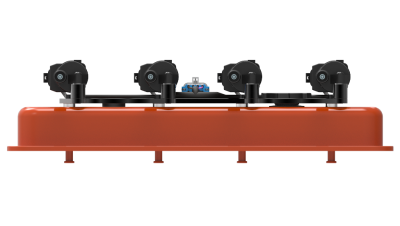

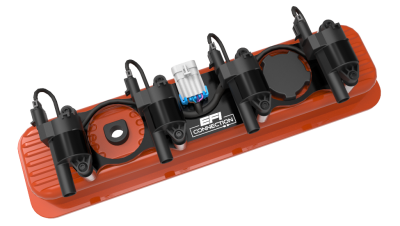

This coil bracket assembly is designed to be used center bolt valve covers on SBC and LT1 engines. Manufactured from thick, 1/4 inch, 6061 billet aluminum and anodized black for a long lasting quality finish. Includes two brackets, 8 ignition coils (D514A type), 2 coil wire harness assemblies (not shown) and 16 fasteners (coils to spacers), 8 fasteners (bracket through valve cover), and 8 spacers (to elevate bracket from valve cover). Other items shown in photo are for representation only and are not included. For a V8 engine, two bracket assemblies are included. Purchasing a Qty 1 of this item will provide for one set of 8 ignition coils.
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00506 | Coil Harness Connector Pigtail - PCM Side for LS-type coil harness | – | $15.00 |
Replacement Parts
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
120-00072 | Ignition Coil Brackets (D514A) for LS-Series Ignition Coils (GM P/N 12573190) | – | $195.00 | |
|
100-00453 | Ignition Coil Harness (D514A) for EFI# 120-00072 Bracket | – | $65.00 | |
|
110-00002 | Airtex/Wells Ignition Coil 5C1555 (D514A) for LS2 LS3 LS7 LS-Series Engines | – | $40.00 | |
|
120-00288 | Bolt Kit - EFI SBC/LT1 Ignition Coil Bracket w/ Stock Stamped Steel Valve Cover | – | $25.00 |
