EFI 24x Crank Sensor Test Harness
Part #: 100-00642
Attributes
- Application: IGNITION
- Engine Type: LS (24X)
Dimensions
- Weight: 1 Ounce

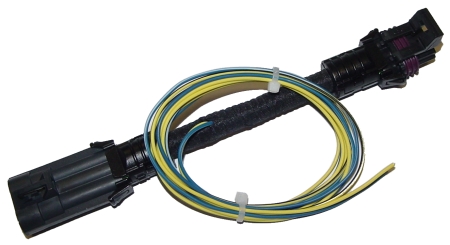

When diagnosing a no spark or intermittent spark condition after an EFI 24x conversion, it is most useful to watch for a good 24 pulse waveform using an oscilloscope. This breakout harness connects between the 24x crank sensor and engine harness while breaking out the sensor signal wire (BLUE/WHITE) and sensor low wire (YELLOW/BLACK). The length of the breakout leads is approximately 5ft. This harness is not for use with an LS1 crank sensor or LS1 engine harness.
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
110-00005 | Standard Motor Products Crankshaft Position CKP Sensor PC123 for 1996-Newer Vortec 4.3L 5.0L 5.7L 7.4L SBC BBC Engines | – | $45.00 |
