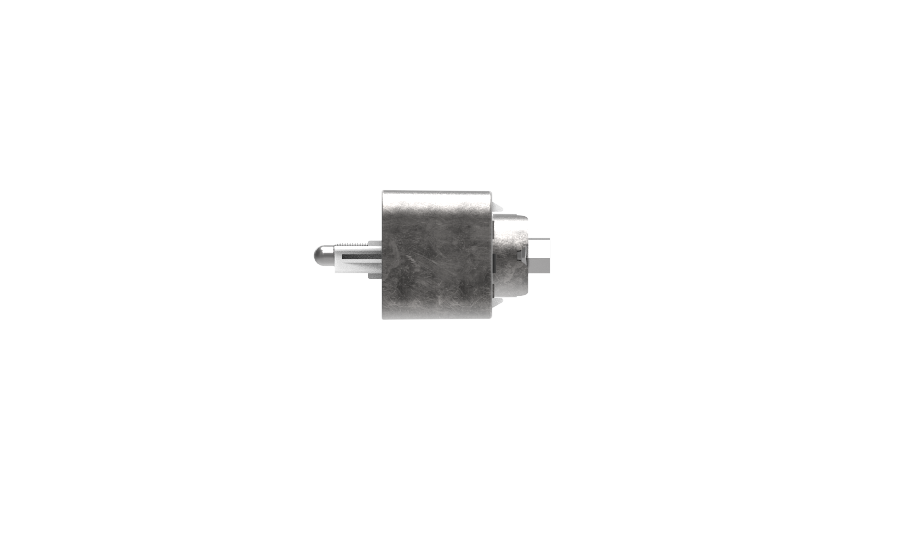

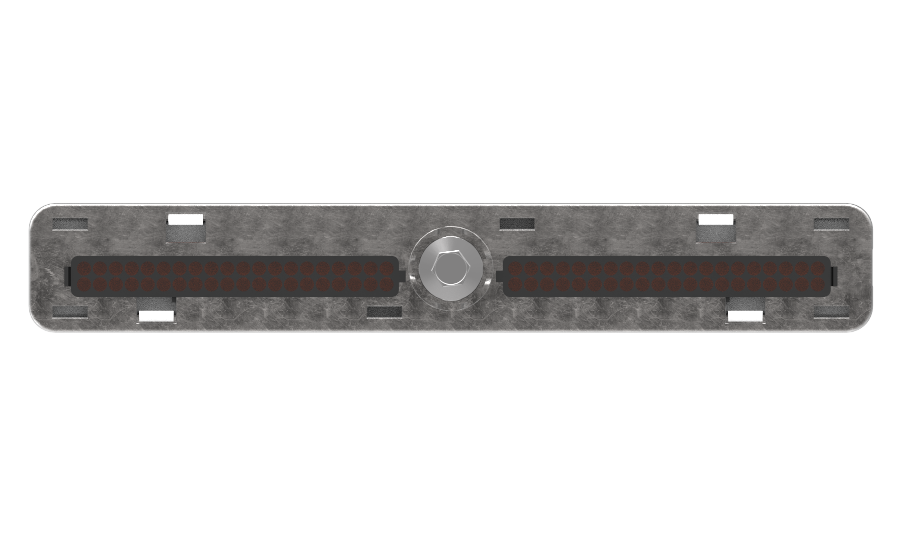

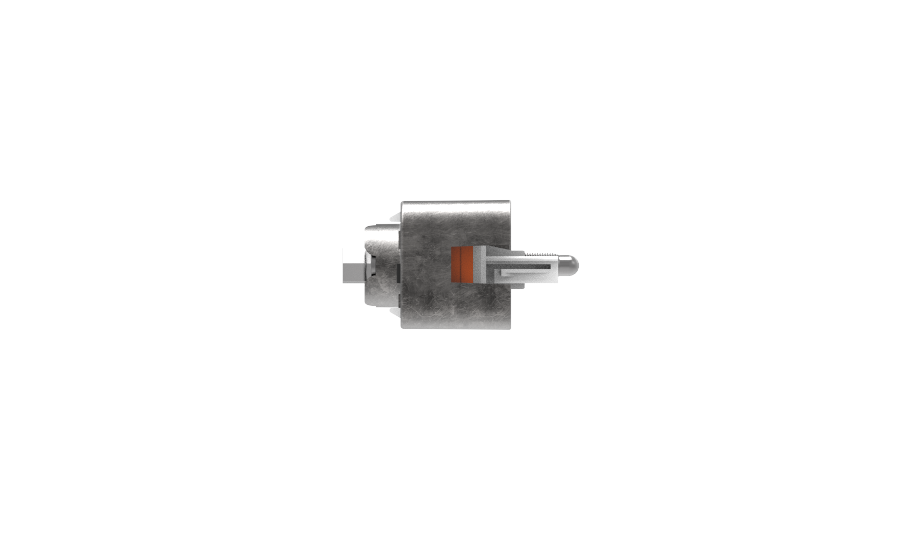

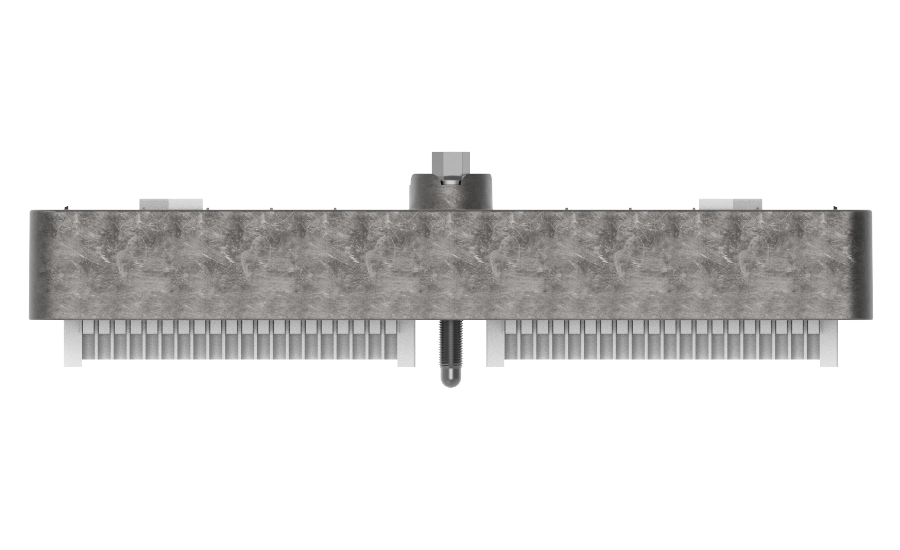

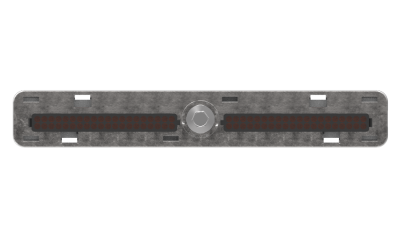

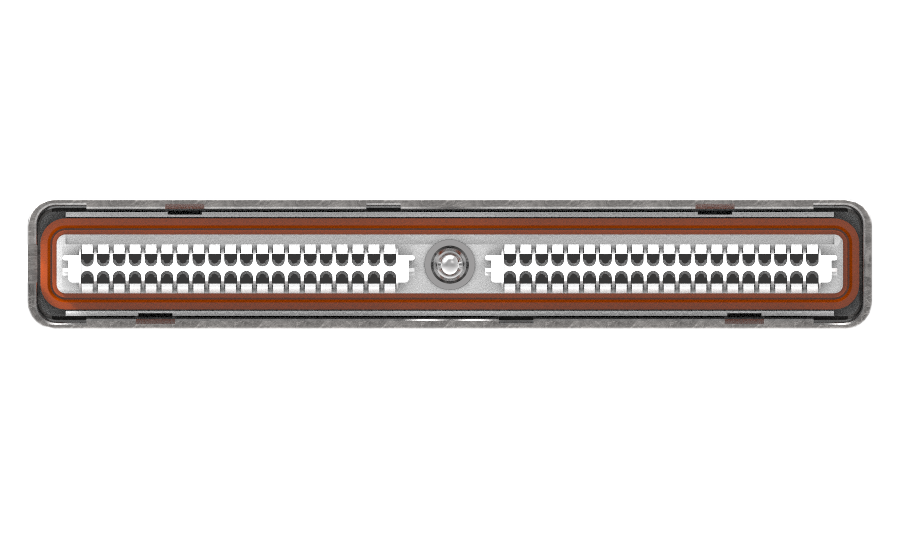

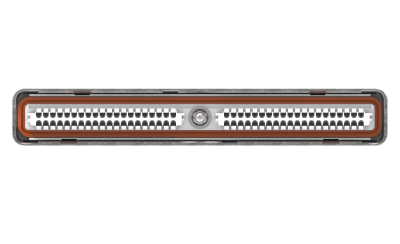

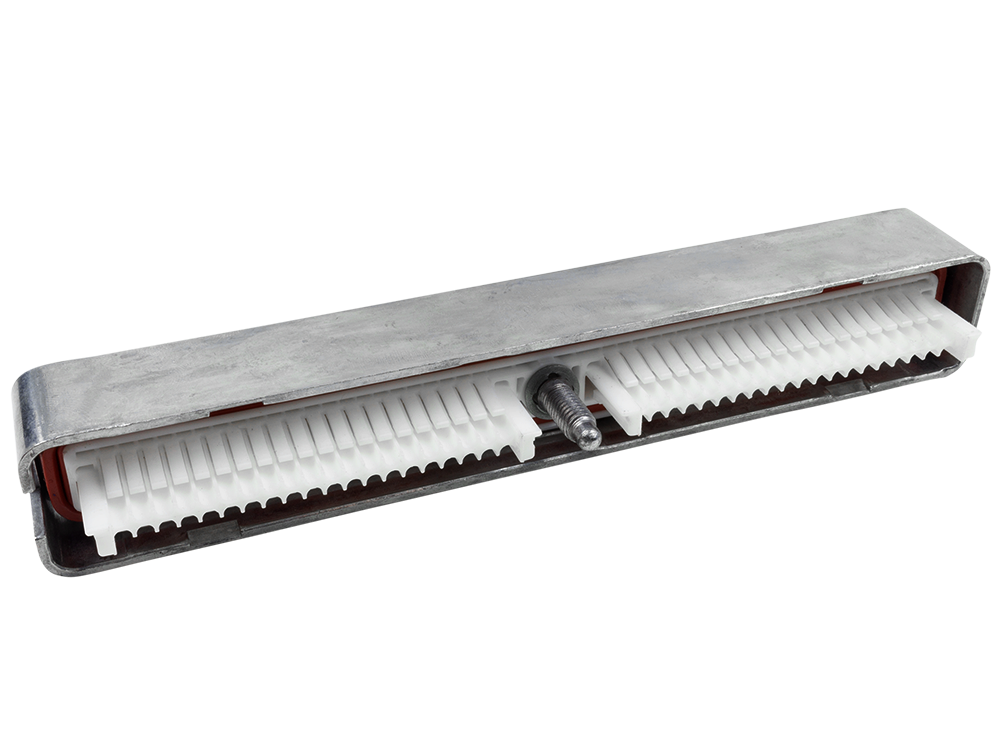

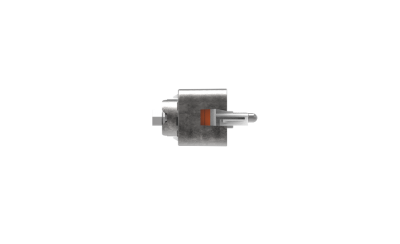

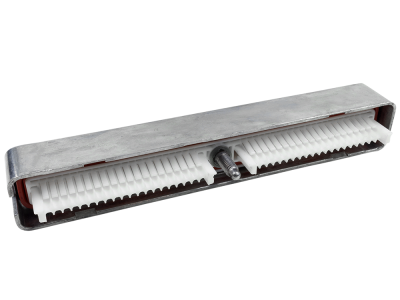

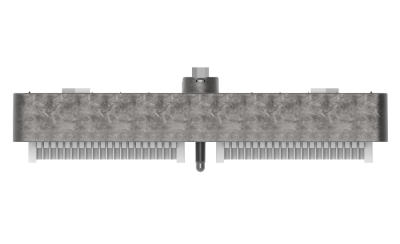

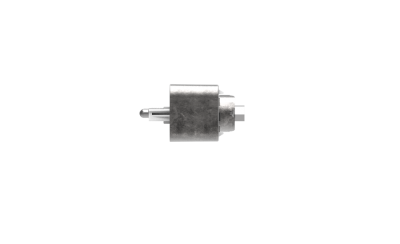

Aptiv (Delphi) 80 Way Natural Micro-Pack 100W Sealed Female Connector
Part #: 100-00097
Inventory: 38
Attributes
- COLOR: NATURAL
- CAVITY COUNT: 80
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: MICRO-PACK
- SERIES: 100W
Dimensions
- Weight: 5 Ounces
This connector is used with all LS1/LS6 type PCMs. Each connector requires TWO colored retainers (blue, red, green, or clear). All connector cavities are blocked. Opening a connector cavity simply involves pushing the terminal through the cavity seal.
Dress Cover
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00363 | Delphi Micro-Pack 100W Dress Cover | – | $12.50 |
Retainers
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-02253 | EFI Micro-Pack 100W Retainer Blue 12176408 for Gen III LS-Series PCMs | – | $3.00 | |
|
100-01735 | EFI Micro-Pack 100W Retainer Red 12176410 for Gen III LS-Series PCMs | – | $3.00 | |
|
100-01729 | EFI Micro-Pack 100W Retainer Green 15358857 for Gen III LS-Series PCMs | – | $3.00 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00176 | Aptiv (Delphi) Micro-Pack 100W Female Unsealed Gold (Au) 22-20 AWG Terminal | 10 | $0.52 | |
|
100-00177 | Aptiv (Delphi) Micro-Pack 100W Female Unsealed Gold (Au) 18 AWG Terminal | 10 | $0.52 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00215 | Delphi Micro-Pack 100W Cavity Plug | 10 | $0.20 |
Tools
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
130-00001 | Delphi Micro-Pack 100W Terminal Removal Tool | – | $45.00 |
