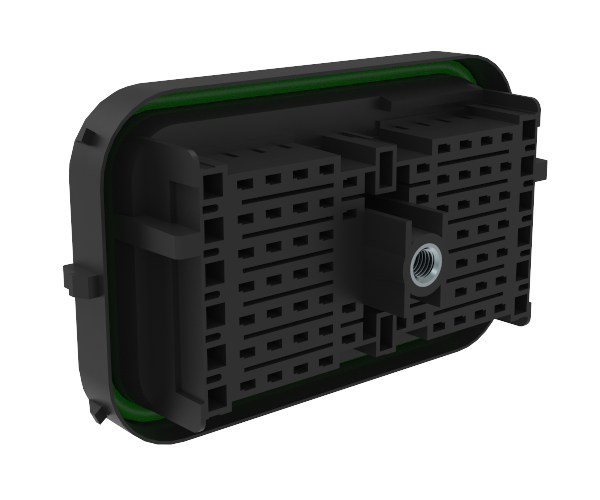

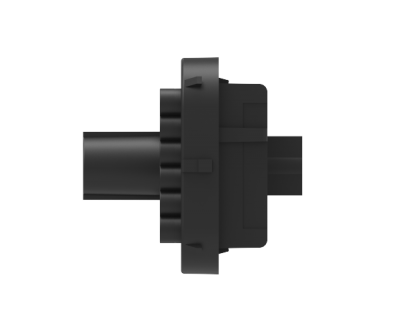

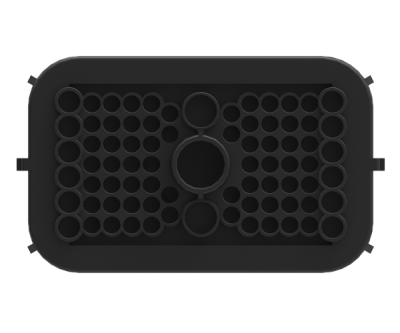

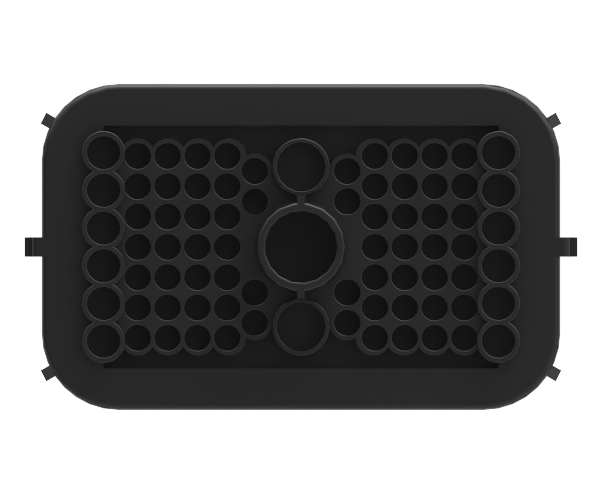

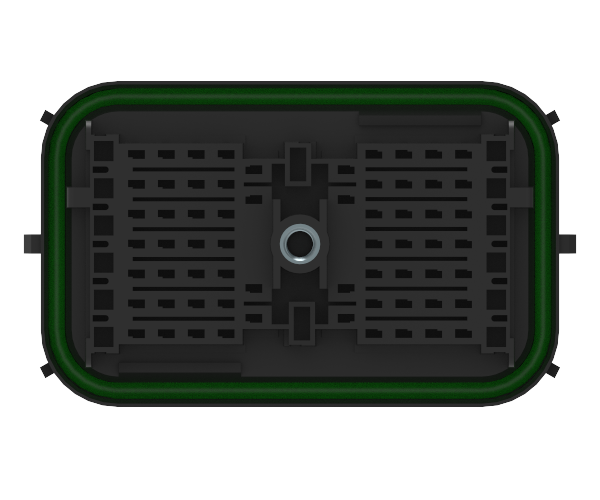

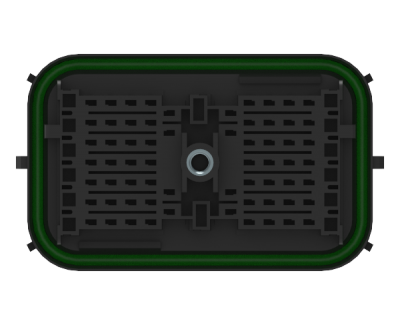

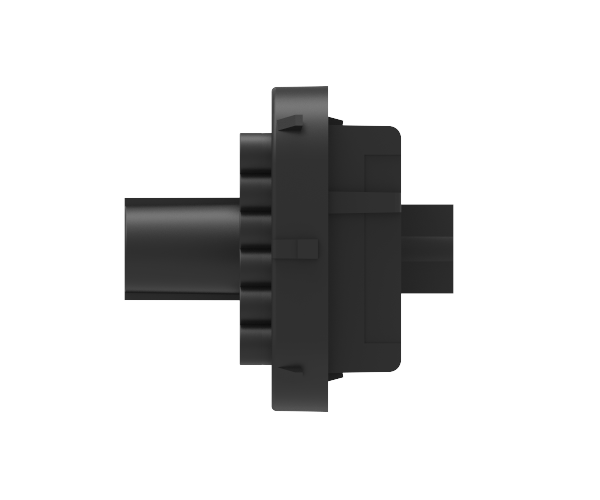

Aptiv (Delphi) 78 Way Male Connector Assembly

$35.00/ea
QtyPrice/ea
1$35.00
5$33.50

Part #: 100-00934

Attributes

  • COLOR: BLACK
  • CAVITY COUNT: 78
  • SEALED: SEALED
  • MANUFACTURER: DELPHI
  • FAMILY: METRI-PACK
  • SERIES: 280, 480, 630

Dimensions

  • Weight: 1 Ounce

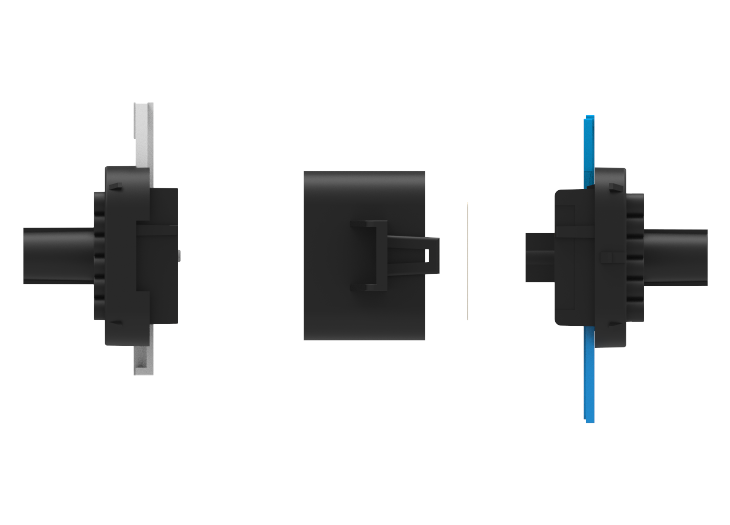

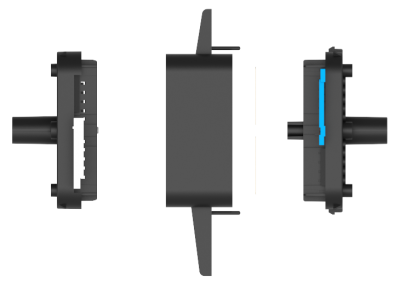

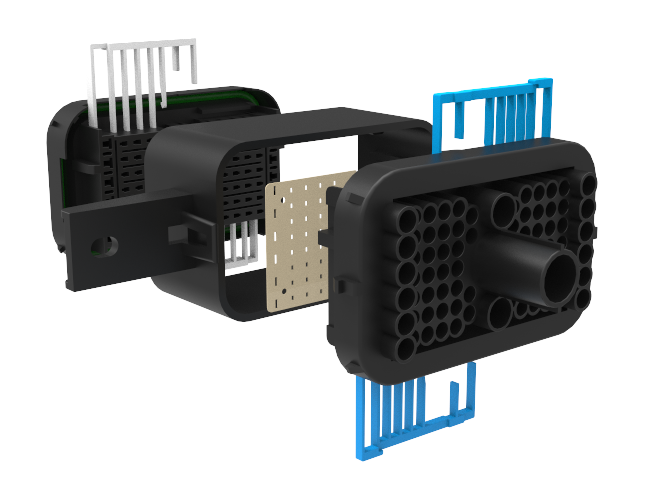

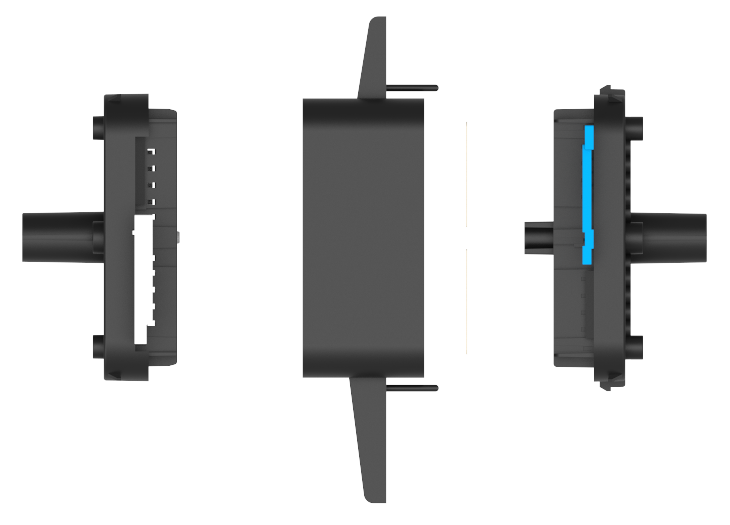

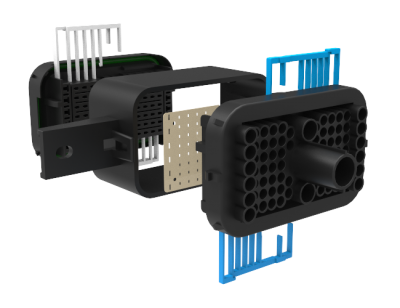

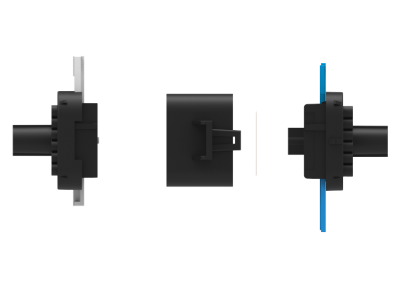

This connector is to be used only as a part of a 78 wire junction system. Required, but sold separately are:

  • Shroud
  • Stabilizer (Quantity of 2)
  • Secondary Lock (Quantity of 2)
  • Metri-Pack 150 Series Terminals and Cable Seals
  • Metri-Pack 280 Series Terminals and Cable Seals
  • Metri-Pack 630 Series Terminals and Cable Seals

Mating Connectors

Part # Description Min Qty Price Qty
100 00930 100-00930 Aptiv (Delphi) 78 Way Female Connector Assembly – $15.00

Secondary Locks

Part # Description Min Qty Price Qty
100 00918 100-00918 Delphi Blue Secondary Lock Comb for 78 Way Metri-Pack Junction System – $1.00

Terminals

Part # Description Min Qty Price Qty
100 00134 100-00134 Aptiv (Delphi) Metri-Pack 150 Male Sealed Tin (Sn) 22-20 AWG Terminal 10 $0.27
100 00136 100-00136 Aptiv (Delphi) Metri-Pack 150 Male Sealed Tin (Sn) 20-18 AWG Terminal 10 $0.27
100 00149 100-00149 Aptiv (Delphi) Metri-Pack 280 Male Sealed Tin (Sn) 20-18 AWG Terminal 10 $0.40
100 00150 100-00150 Aptiv (Delphi) Metri-Pack 280 Male Sealed Tin (Sn) 14-12 AWG Terminal 10 $0.40
100 00720 100-00720 Aptiv (Delphi) Metri-Pack 630 Male Sealed Tin (Sn) 12 AWG Terminal 10 $0.45

Cable Seals

Part # Description Min Qty Price Qty
100 00192 100-00192 Delphi Metri-Pack 150 Cable Seal BLUE for Cable Diameters 1.70-1.29mm 10 $0.27
100 00194 100-00194 Delphi Metri-Pack 150 Cable Seal WHITE for Cable Diameters 2.15-1.60mm 10 $0.27
100 00193 100-00193 Delphi Metri-Pack 150 Cable Seal RED for Cable Diameters 2.85-2.03mm 10 $0.27
100 00779 100-00779 Delphi Metri-Pack 280 & Weather-Pack Cable Seal RED for Cable Diameters 1.70-1.29mm 10 $0.30
100 00198 100-00198 Delphi Metri-Pack 280 & Weather-Pack Cable Seal PURPLE for Cable Diameters 2.15-1.60mm 10 $0.30
100 00199 100-00199 Delphi Metri-Pack 280 & Weather-Pack Cable Seal TAN for Cable Diameters 2.42-2.03mm 10 $0.30
100 00197 100-00197 Delphi Metri-Pack 280 & Weather-Pack Cable Seal GREEN for Cable Diameters 2.85-2.03mm 10 $0.30
100 00196 100-00196 Delphi Metri-Pack 280 & Weather-Pack Cable Seal GRAY for Cable Diameters 3.49-2.81mm 10 $0.30
100 00195 100-00195 Delphi Metri-Pack 280 & Weather-Pack Cable Seal BLUE for Cable Diameters 4.30-3.45mm 10 $0.30
100 00205 100-00205 Delphi Metri-Pack 630 Cable Seal RED for Cable Diameters 2.85-2.01mm 5 $0.30
100 00204 100-00204 Delphi Metri-Pack 630 Cable Seal GRAY for Cable Diameters 3.75-2.81mm 5 $0.30
100 00850 100-00850 Delphi Metri-Pack 630 Cable Seal BLUE for Cable Diameters 4.50-3.61mm – $0.85

Plugs

Part # Description Min Qty Price Qty
100 00211 100-00211 Delphi Metri-Pack 150 Cavity Plug 10 $0.35
100 00212 100-00212 Delphi Metri-Pack 280 Cavity Plug 5 $0.45
100 00905 100-00905 Delphi Metri-Pack 630 Cavity Plug – $0.75

Associated Items

Part # Description Min Qty Price Qty
100 00926 100-00926 Delphi Shroud for 78 Way Metri-Pack Junction System – $5.00
100 00916 100-00916 Delphi Stabilizer for 78 Way Metri-Pack Junction System – $1.00
