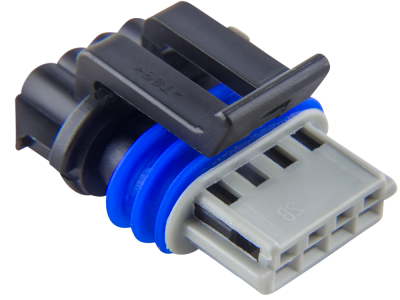

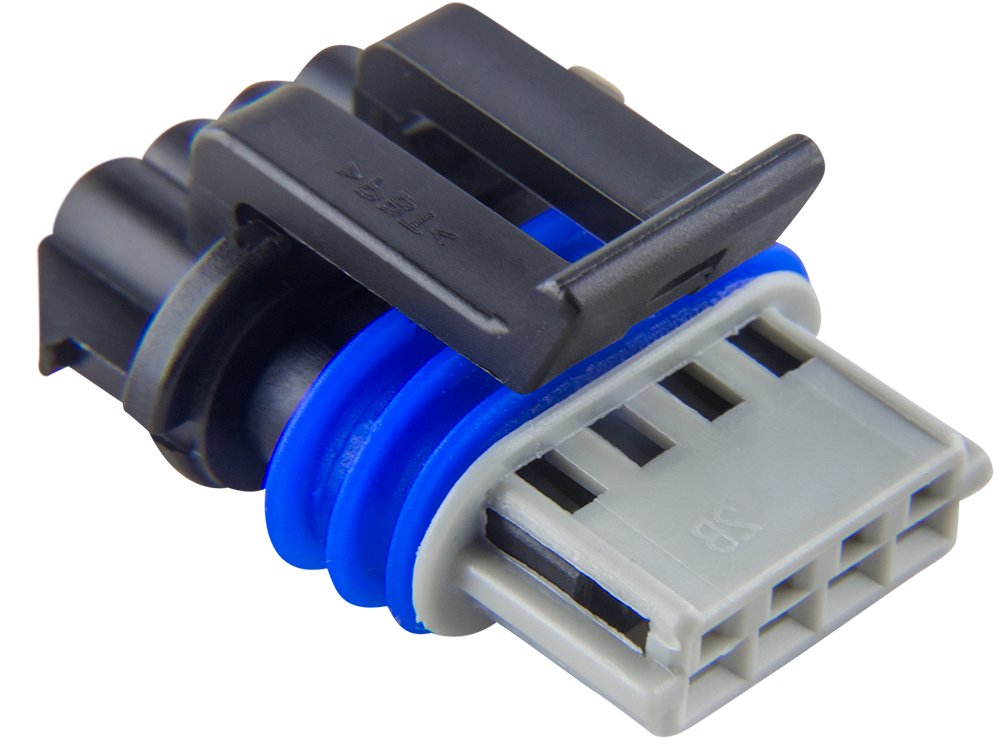

Aptiv (Delphi) 4 Way Black GT 150 3.5mm Centerline Sealed Female Connector
Part #: 100-00027
Attributes
- COLOR: BLACK
- CAVITY COUNT: 4
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: GT
- SERIES: 150 3.5MM CENTERLINE
Dimensions
- Weight: 4 Grams
This connector can be used with many LS type ignition coils and the early (non vented) LT1 optispark.
Mating Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-02001 | Caspers 4 Way Black Metri-Pack 150 Sealed Male Connector | – | $12.00 |
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00510 | Ignition Coil Connector Pigtail | – | $10.75 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00239 | Delphi 4 Way GRAY GT 150 TPA | – | $0.90 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00126 | Aptiv (Delphi) GT 150 3.5mm Centerline Female Sealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.30 | |
|
100-00127 | Aptiv (Delphi) GT 150 3.5mm Centerline Female Sealed Tin (Sn) 18 AWG Terminal | 10 | $0.30 |
Cable Seals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00191 | Delphi GT 150 3.5mm Cable Seal GREEN for Cable Diameters 1.90-1.40mm | 10 | $0.25 | |
|
100-00629 | Delphi GT 150 3.5mm Cable Seal YELLOW for Cable Diameters 2.10-1.70mm | 10 | $0.30 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00209 | Delphi GT 150 3.5mm Cavity Plug | 10 | $0.25 |
