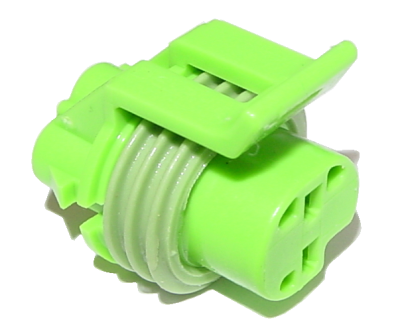

Aptiv (Delphi) 4 Way 2 Usable Light Green Metri-Pack 150 Sealed Female Connector
Part #: 100-00814
Attributes
- COLOR: GREEN
- CAVITY COUNT: 4, 2
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: METRI-PACK
- SERIES: 150
Dimensions
- Weight: 4.63 Grams
This connector is used with some GM oil pressure sending units. In particular, with the 1998 LS1 F-Body.
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00815 | Oil Pressure Sending Unit Connector Pigtail - 2 Wire for GM TBI TPI LT1 LT4 LS1 and many other oil pressure sending units | – | $10.00 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00391 | Delphi 4 Way BLACK Metri-Pack 150 TPA | – | $0.75 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00130 | Aptiv (Delphi) Metri-Pack 150 Female Sealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.27 | |
|
100-00132 | Aptiv (Delphi) Metri-Pack 150 Female Sealed Tin (Sn) 20-16 AWG Terminal | 10 | $0.27 |
Cable Seals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00192 | Delphi Metri-Pack 150 Cable Seal BLUE for Cable Diameters 1.70-1.29mm | 10 | $0.27 | |
|
100-00194 | Delphi Metri-Pack 150 Cable Seal WHITE for Cable Diameters 2.15-1.60mm | 10 | $0.27 | |
|
100-00193 | Delphi Metri-Pack 150 Cable Seal RED for Cable Diameters 2.85-2.03mm | 10 | $0.27 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00211 | Delphi Metri-Pack 150 Cavity Plug | 10 | $0.35 |
