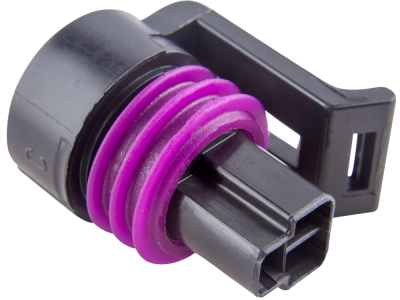

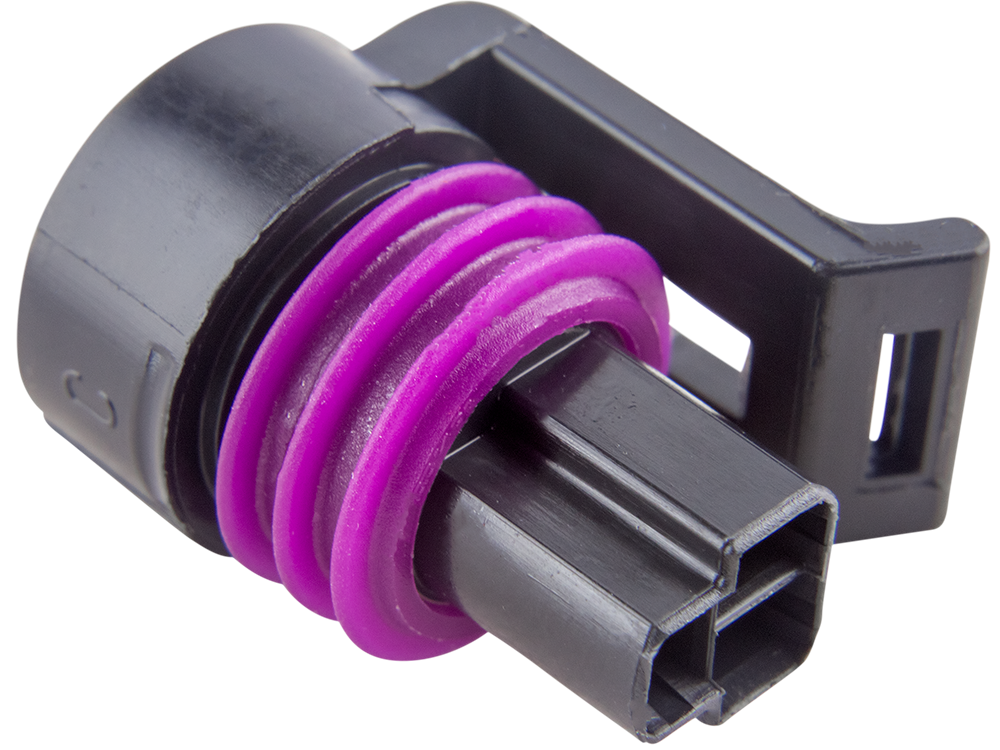

Aptiv (Delphi) 3 Way Black Metri-Pack 150.2 Sealed Female Connector
Part #: 100-00004
Attributes
- COLOR: BLACK
- CAVITY COUNT: 3
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: METRI-PACK
- SERIES: 150.2
Dimensions
- Weight: 3 Grams
This connector can be used with many GM throttle position sensors, oil pressure sensors, and A/C pressure sensors. The red cable seal is appropriate for 18-20ga wire.
Mating Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-02229 | Caspers 3 Way Black Metri-Pack 150 Sealed Male Connector | – | $10.00 |
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00273 | Throttle Position Sensor Connector Pigtail for LT1 & all cable throttle LS1 LS6 TPS | – | $11.50 | |
|
100-00455 | Oil Temperature Sensor Connector Pigtail for LT1 LT4 Corvette | – | $11.50 | |
|
100-00518 | A/C Pressure Sensor Connector Pigtail | – | $11.50 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00343 | Aptiv (Delphi) Metri-Pack 150.2 Female Unsealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.28 | |
|
100-00142 | Aptiv (Delphi) Metri-Pack 150.2 Female Unsealed Tin (Sn) 18-16 AWG Terminal | 10 | $0.28 |
