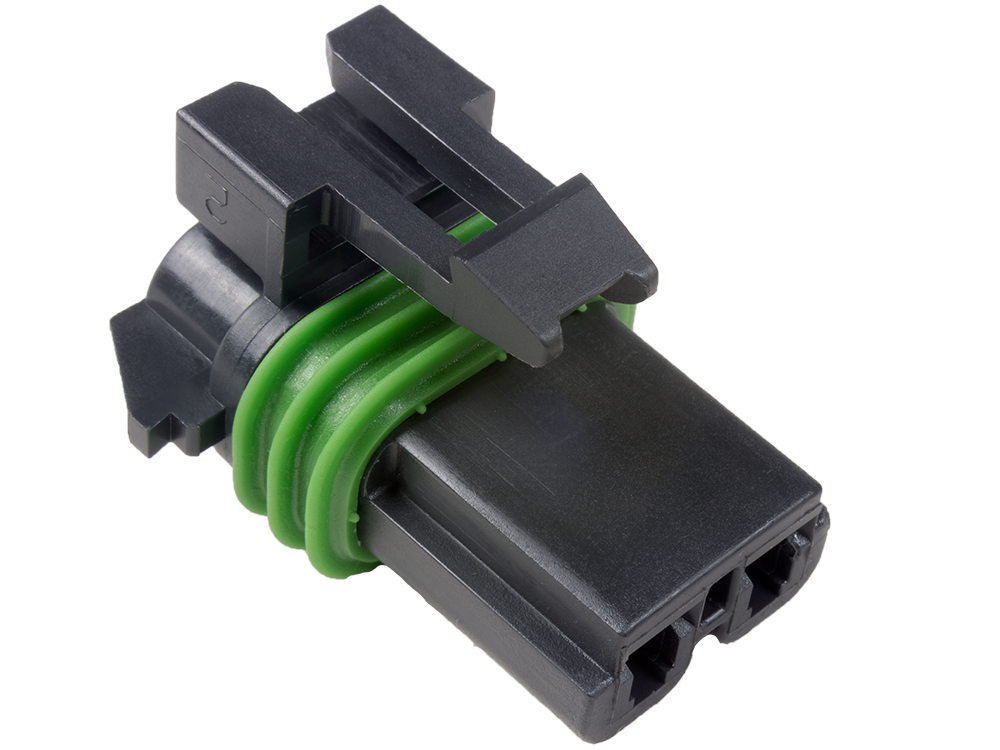

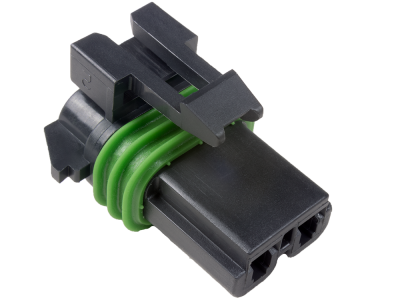

Aptiv (Delphi) 2 Way Black Metri-Pack 280 Sealed Female Connector

$7.50/ea
QtyPrice/ea
1$7.50
5$4.00

Part #: 100-00503

Attributes

  • COLOR: BLACK
  • CAVITY COUNT: 2
  • SEALED: SEALED
  • MANUFACTURER: DELPHI
  • FAMILY: METRI-PACK
  • SERIES: 280

Dimensions

  • Weight: 3.61 Grams

This connector is used with the LS1/LS6 Corvette, LS6 CTS-V, and 2002-older truck throttle body motors.

This connector is used in the following assemblies:

Part # Description Min Qty Price Qty
100 00340 100-00340 Throttle Body Motor 78mm TB LS1 LS6 Connector Pigtail for GM 1997-2004 LS1 LS6 Corvette and 2004-2005 LS6 Cadillac CTS-V – $12.00
100 00460 100-00460 Throttle Body Motor 78mm TB LQ4 LQ9 Truck Connector Pigtail for GM 1999-2002 Gen III LS-Series Truck LQ4 LQ9 – $12.00

Secondary Locks

Part # Description Min Qty Price Qty
100 00502 100-00502 Delphi 2 Way BLUE Metri-Pack 280 TPA – $0.85
100 00396 100-00396 Delphi GREEN Metri-Pack 280 CPA – $1.00

Terminals

Part # Description Min Qty Price Qty
100 00145 100-00145 Aptiv (Delphi) Metri-Pack 280 Female Sealed Tin (Sn) 20-16 AWG Terminal 10 $0.25
100 00146 100-00146 Aptiv (Delphi) Metri-Pack 280 Female Sealed Tin (Sn) 14-12 AWG Terminal 10 $0.30
100 00147 100-00147 Aptiv (Delphi) Metri-Pack 280 Female Sealed Tin (Sn) 10 AWG Terminal 10 $0.30

Cable Seals

Part # Description Min Qty Price Qty
100 00779 100-00779 Delphi Metri-Pack 280 & Weather-Pack Cable Seal RED for Cable Diameters 1.70-1.29mm 10 $0.30
100 00198 100-00198 Delphi Metri-Pack 280 & Weather-Pack Cable Seal PURPLE for Cable Diameters 2.15-1.60mm 10 $0.30
100 00199 100-00199 Delphi Metri-Pack 280 & Weather-Pack Cable Seal TAN for Cable Diameters 2.42-2.03mm 10 $0.30
100 00197 100-00197 Delphi Metri-Pack 280 & Weather-Pack Cable Seal GREEN for Cable Diameters 2.85-2.03mm 10 $0.30
100 00196 100-00196 Delphi Metri-Pack 280 & Weather-Pack Cable Seal GRAY for Cable Diameters 3.49-2.81mm 10 $0.30
100 00195 100-00195 Delphi Metri-Pack 280 & Weather-Pack Cable Seal BLUE for Cable Diameters 4.30-3.45mm 10 $0.30
