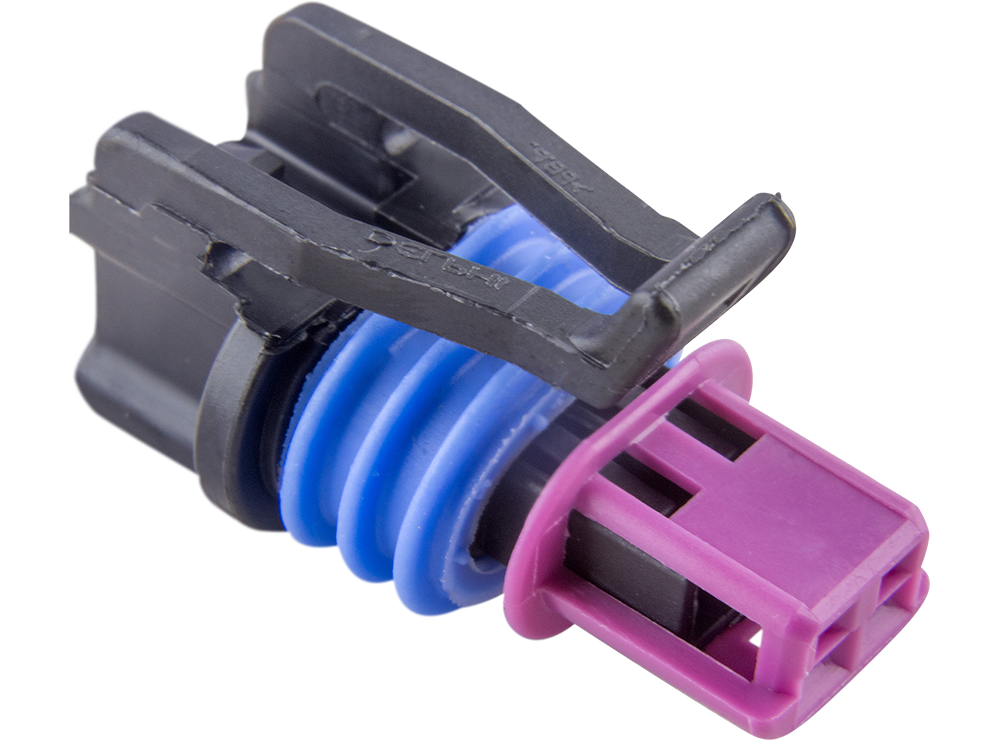

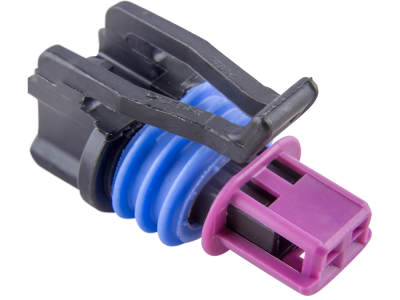

Aptiv (Delphi) 2 Way Black GT 150 3.5mm Centerline Sealed Female Connector
Part #: 100-00366
Attributes
- COLOR: BLACK
- CAVITY COUNT: 2
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: GT
- SERIES: 3.5MM CENTERLINE
Dimensions
- Weight: 2.46 Grams
This connector is used with most 2003 and newer coolant temperature sensors.
Mating Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00381 | Aptiv (Delphi) 2 Way Black Metri-Pack 150.2 Unsealed Male Connector | – | $13.50 |
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00671 | Oil Temperature Sensor Connector Pigtail for many GM applications | – | $12.00 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00237 | Delphi 2 Way GRAY GT 150 TPA | – | $0.80 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00126 | Aptiv (Delphi) GT 150 3.5mm Centerline Female Sealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.30 | |
|
100-00127 | Aptiv (Delphi) GT 150 3.5mm Centerline Female Sealed Tin (Sn) 18 AWG Terminal | 10 | $0.30 |
Cable Seals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00191 | Delphi GT 150 3.5mm Cable Seal GREEN for Cable Diameters 1.90-1.40mm | 10 | $0.25 | |
|
100-00629 | Delphi GT 150 3.5mm Cable Seal YELLOW for Cable Diameters 2.10-1.70mm | 10 | $0.30 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00209 | Delphi GT 150 3.5mm Cavity Plug | 10 | $0.25 |
