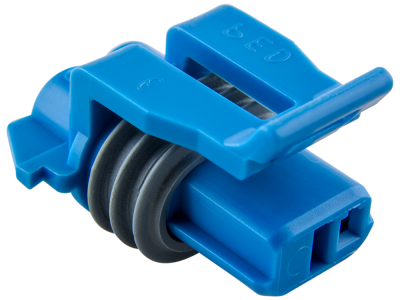

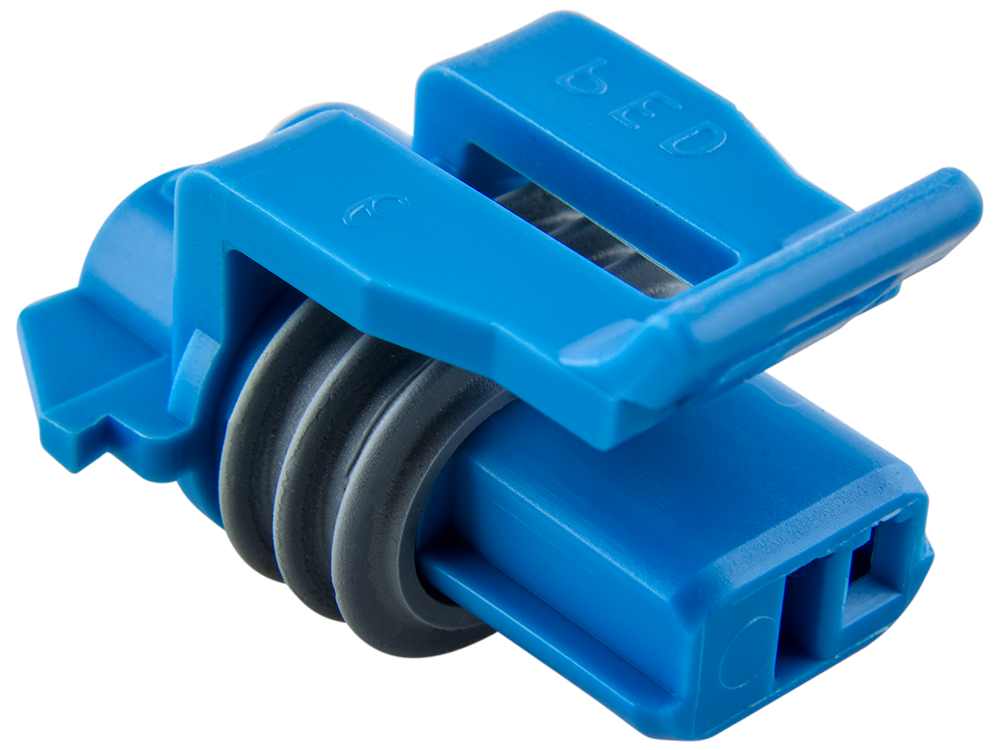

Aptiv (Delphi) 2 Way 1 Usable Blue Metri-Pack 150 Sealed Female Connector
Part #: 100-00033
Attributes
- COLOR: BLUE
- CAVITY COUNT: 1
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: METRI-PACK
- SERIES: 150
Dimensions
- Weight: 3 Grams
This connector is used with most 90s and newer coolant temperature senders.
Mating Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00618 | Aptiv (Delphi) 2 Way Light Gray Metri-Pack 150 Sealed Male Connector | – | $6.50 |
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00306 | Coolant Temperature Sending Unit Connector Pigtail for GM TBI TPI Vortec and many other coolant temperature sending units | – | $12.00 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00355 | Delphi 2 Way BLUE Metri-Pack 150 TPA fits many 2 cavity connectors | – | $0.75 | |
|
100-00525 | Delphi 2 Way BLACK Metri-Pack 150 Conduit TPA | – | $1.25 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00130 | Aptiv (Delphi) Metri-Pack 150 Female Sealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.27 | |
|
100-00132 | Aptiv (Delphi) Metri-Pack 150 Female Sealed Tin (Sn) 20-16 AWG Terminal | 10 | $0.27 |
Cable Seals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00192 | Delphi Metri-Pack 150 Cable Seal BLUE for Cable Diameters 1.70-1.29mm | 10 | $0.27 | |
|
100-00194 | Delphi Metri-Pack 150 Cable Seal WHITE for Cable Diameters 2.15-1.60mm | 10 | $0.27 | |
|
100-00193 | Delphi Metri-Pack 150 Cable Seal RED for Cable Diameters 2.85-2.03mm | 10 | $0.27 |
