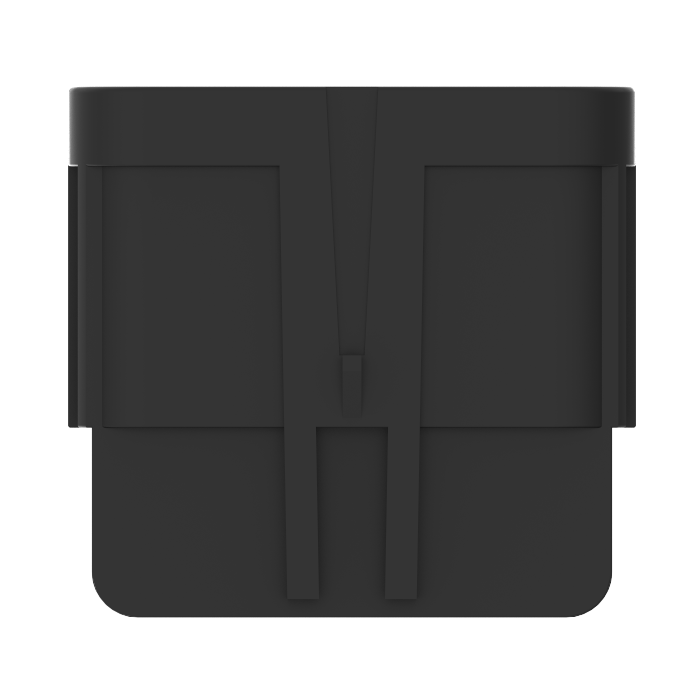

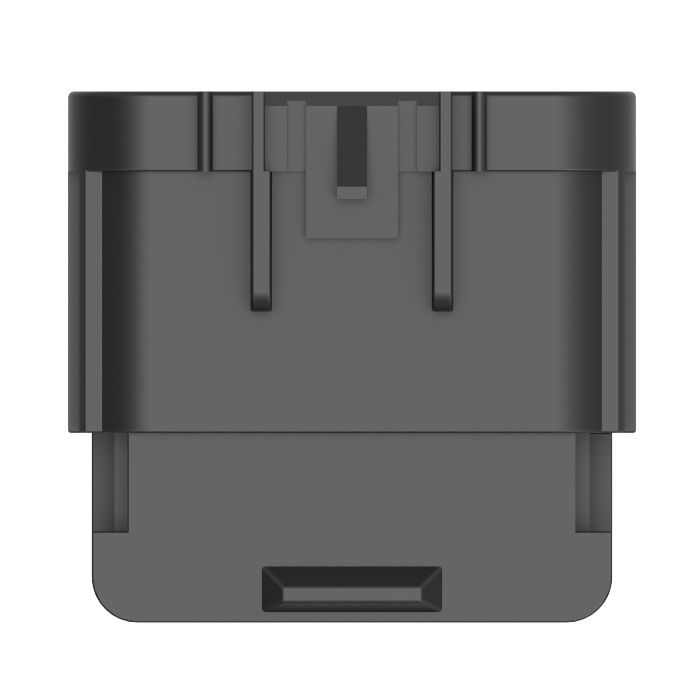

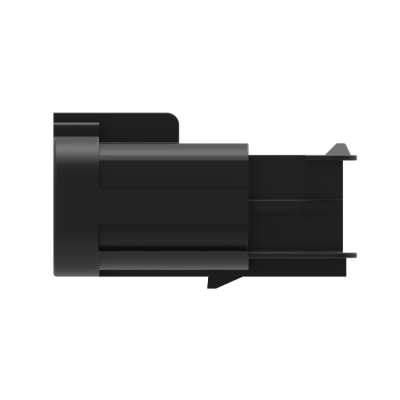

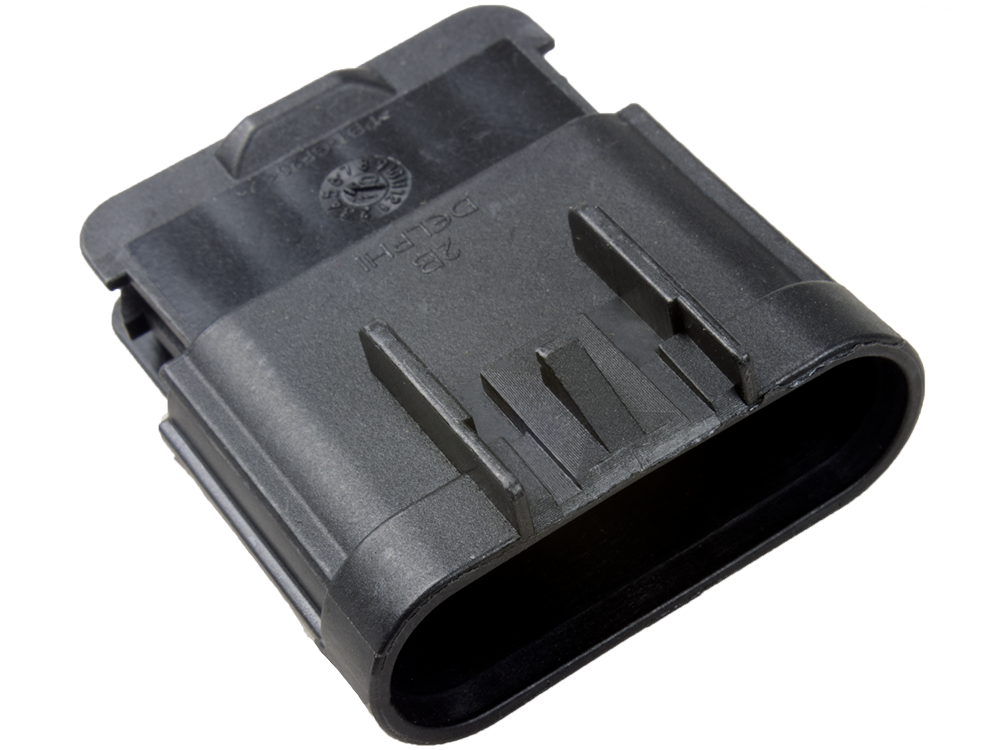

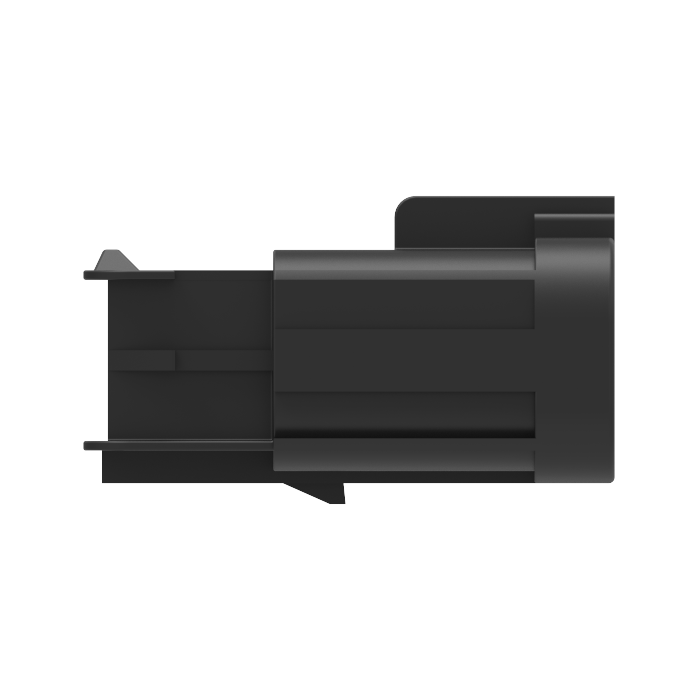

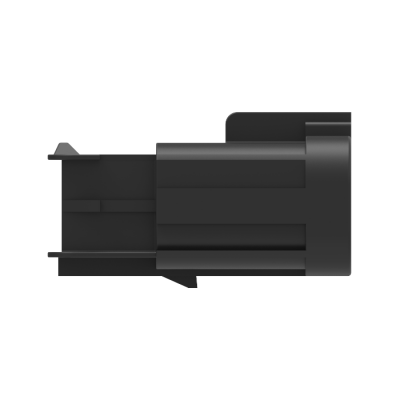

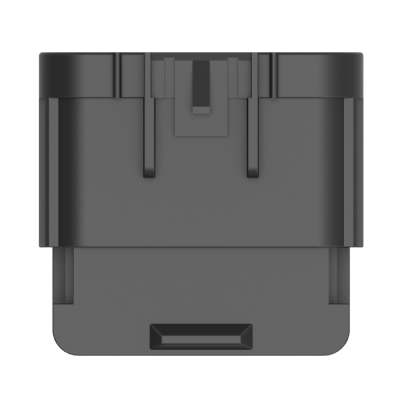

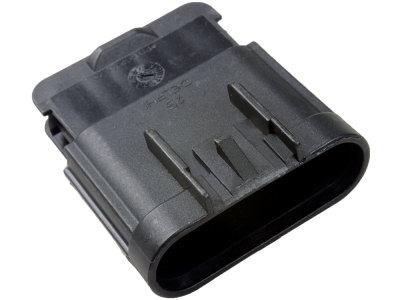

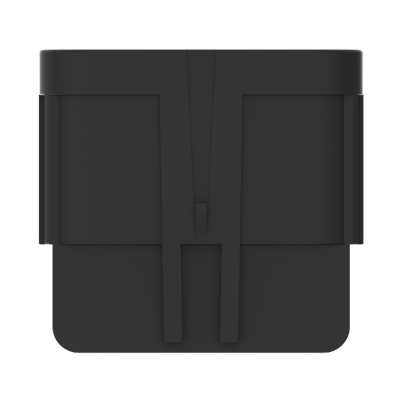

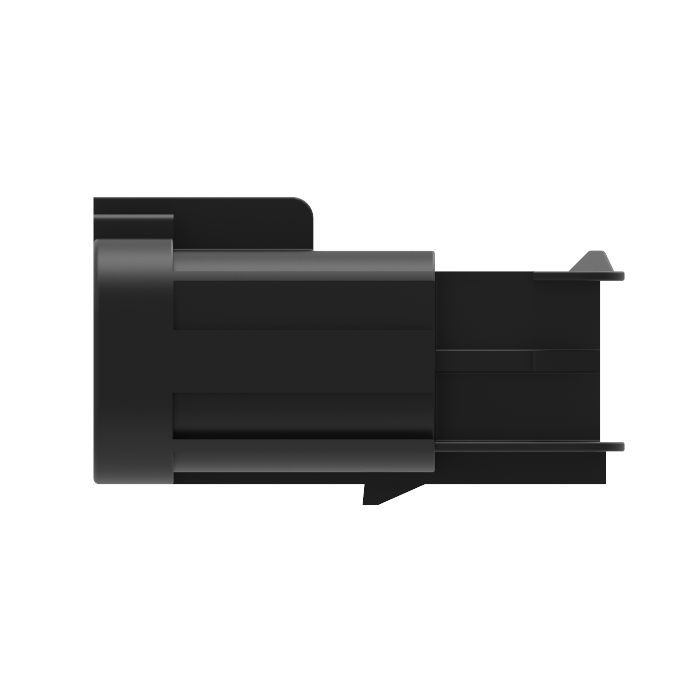

Aptiv (Delphi) 14 Way Black GT 150 280 Sealed Male Connector
Part #: 100-00535
Attributes
- COLOR: BLACK
- CAVITY COUNT: 14
- SEALED: SEALED
- MANUFACTURER: DELPHI
- FAMILY: GT
- SERIES: 150, 280, MIXED
Dimensions
- Weight: 18.35 Grams

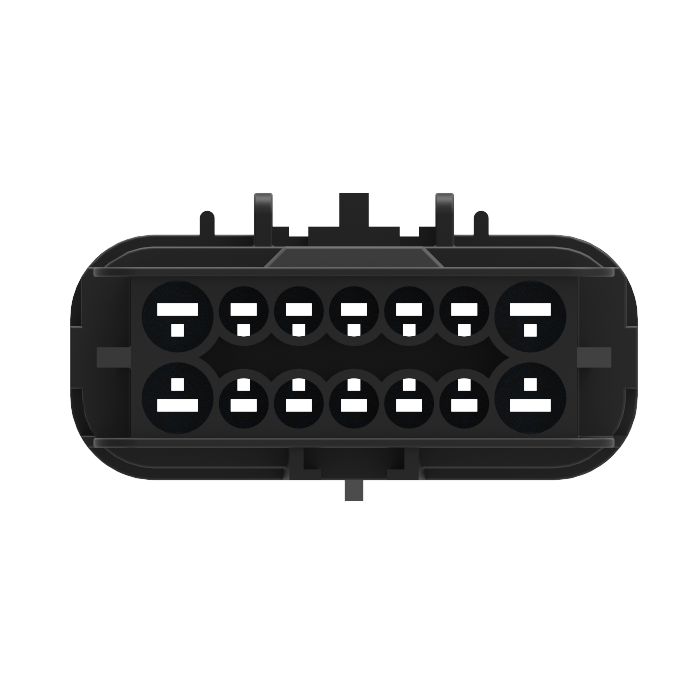

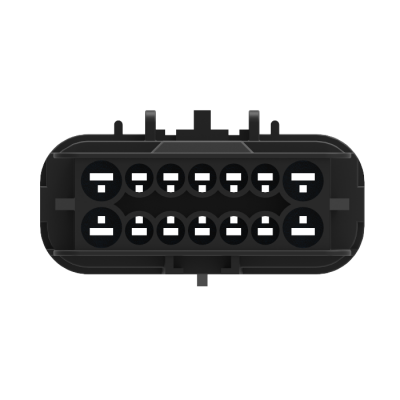

This connector accepts 10 GT 150 series terminals and 4 GT 280 terminals.
Mating Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00534 | Aptiv (Delphi) 14 Way Black GT 150 280 Sealed Female Connector | – | $12.00 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00533 | Delphi 14 Way BLUE GT 150 Mixed TPA | – | $1.00 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00424 | Aptiv (Delphi) GT 150 Male Sealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.30 | |
|
100-00527 | Aptiv (Delphi) GT 150 Male Sealed Tin (Sn) 18-16 AWG Terminal | 10 | $0.30 | |
|
100-00529 | Aptiv (Delphi) GT 280 Male Sealed Tin (Sn) 18-16 AWG Terminal | 5 | $0.75 | |
|
100-00530 | Aptiv (Delphi) GT 280 Male Sealed Tin (Sn) 14-12 AWG Terminal | 5 | $0.45 |
Cable Seals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00190 | Delphi GT 150 Cable Seal WHITE for Cable Diameters 1.90-1.20mm | 10 | $0.28 | |
|
100-00189 | Delphi GT 150 Cable Seal BLUE for Cable Diameters 2.40-1.86mm | 10 | $0.28 | |
|
100-00367 | Delphi GT 280 Cable Seal YELLOW for Cable Diameters 2.40-1.86mm | 5 | $0.35 | |
|
100-00526 | Delphi GT 280 Cable Seal TAN for Cable Diameters 3.20-2.50mm | 5 | $0.35 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00208 | Delphi GT 150 Cavity Plug | 10 | $0.35 | |
|
100-00210 | Delphi GT 280 Cavity Plug | 5 | $0.40 |
