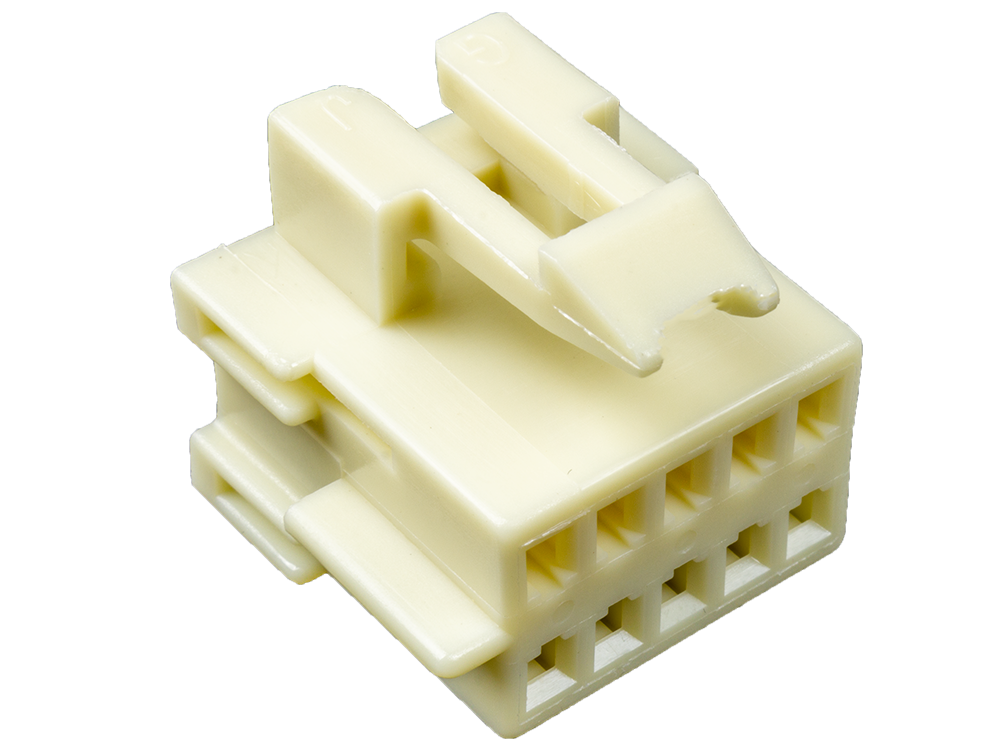

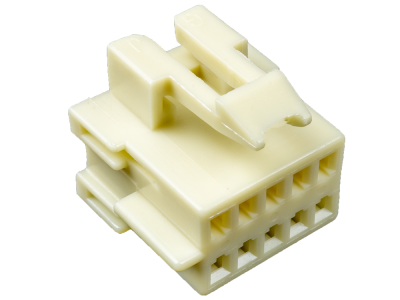

Aptiv (Delphi) 10 Way Cream Metri-Pack 150 Unsealed Female Connector
Part #: 100-00405
Attributes
- COLOR: CREAM
- CAVITY COUNT: 10
- SEALED: UNSEALED
- MANUFACTURER: DELPHI
- FAMILY: METRI-PACK
- SERIES: 150
Dimensions
- Weight: 3.54 Grams
This connector is used in the 93-97 Camaro/Firebird engine harness as connector C220, located under the dashboard. This connector receives two secondary locks.
Mating Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00499 | Aptiv (Delphi) 10 Way Cream Metri-Pack 150 Unsealed Male Connector | – | $9.50 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00404 | Delphi 10 Way GRAY Metri-Pack 150 TPA | – | $0.75 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00129 | Aptiv (Delphi) Metri-Pack 150 Female Unsealed Tin (Sn) 22-20 AWG Terminal | 10 | $0.25 | |
|
100-00131 | Aptiv (Delphi) Metri-Pack 150 Female Unsealed Tin (Sn) 18-16 AWG Terminal | 10 | $0.25 |
