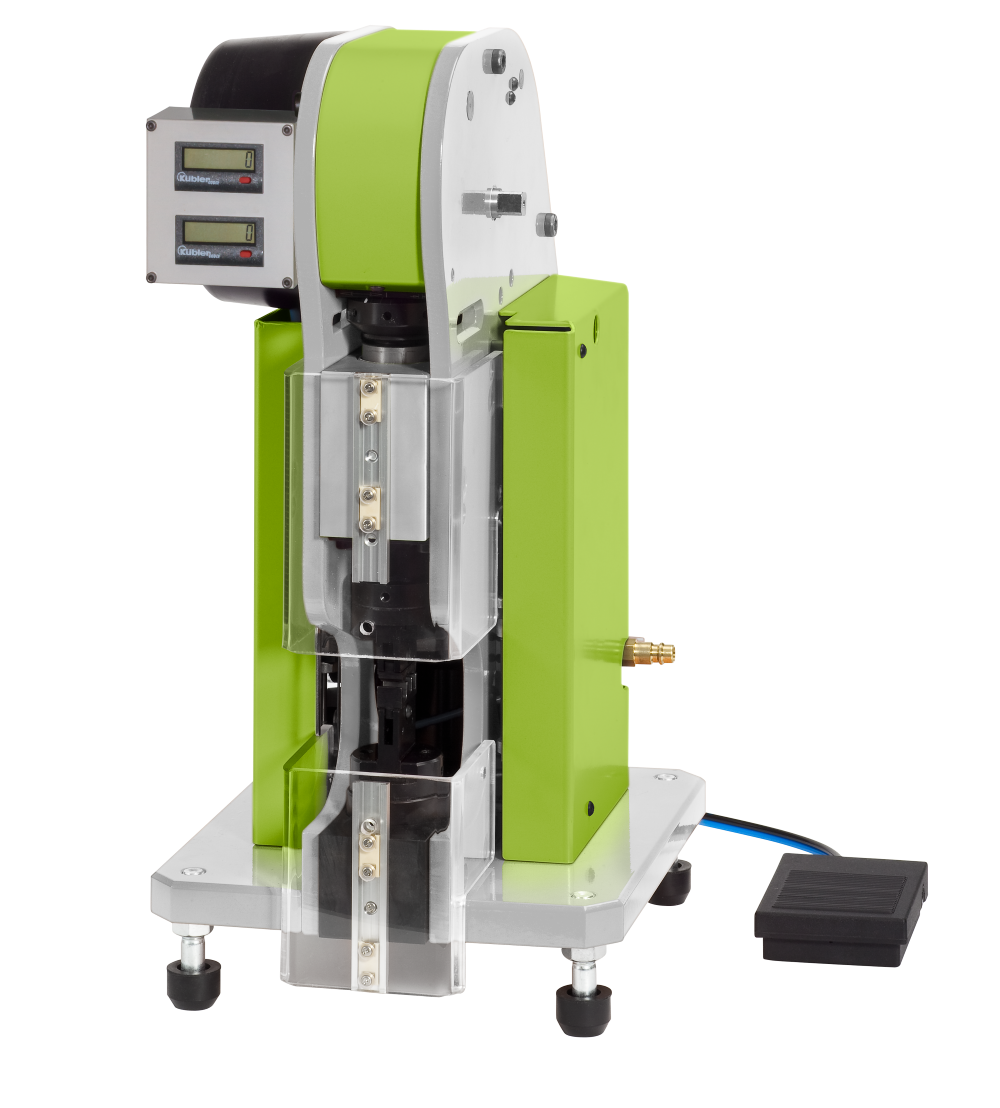

Crimping Machine CM 25-1
w/o die sets
Part #: 636 025-1 RT
Dimensions
- Length: 12.8 inches
- Width: 11 inches
- Height: 19.7 inches
- Weight: 73.8 Pounds
Lead Time: 10 - 12 Weeks
- Maintenance-free crimping machine with 25 kN crimping force
- Operating pressure 6 bar
- Air requirement 0.75 l per working stroke
- Compatible with almost all Rennsteig crimping dies
- counter

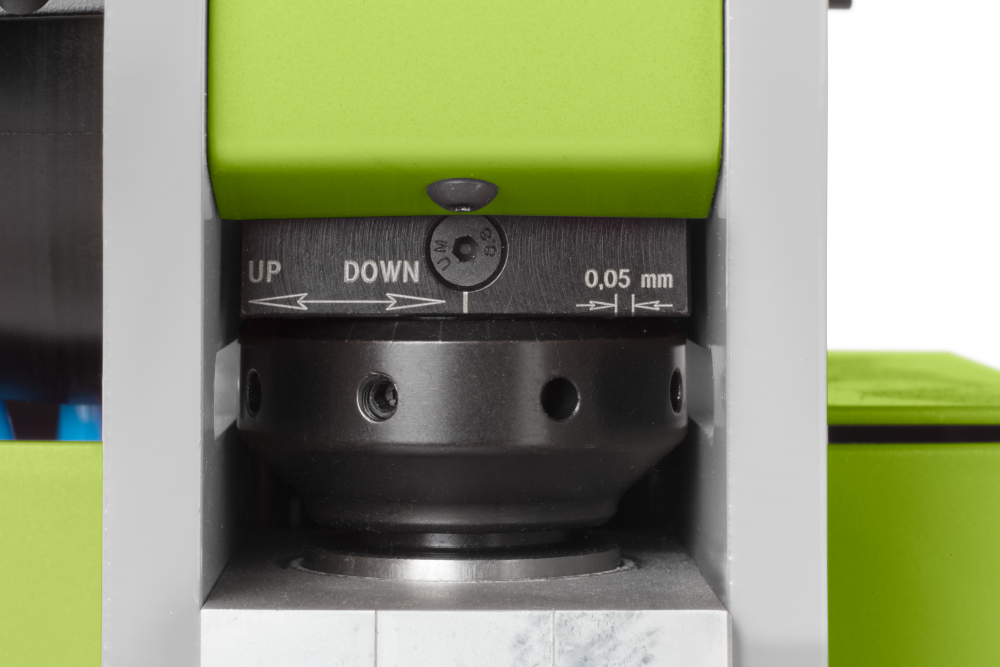

- stroke from 6 to 14 mm (similar to 0.24 - 0.55 inch)
- hand or footswitch
- automatic safety closure - needed only for 14 mm stroke (similar to 0.55 inch)
- adjustable leg height
- userfriendly rotatability of 360°
Made in Germany by Rennsteig.
