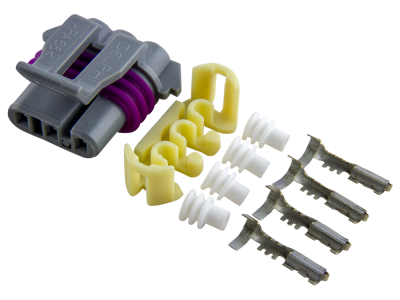

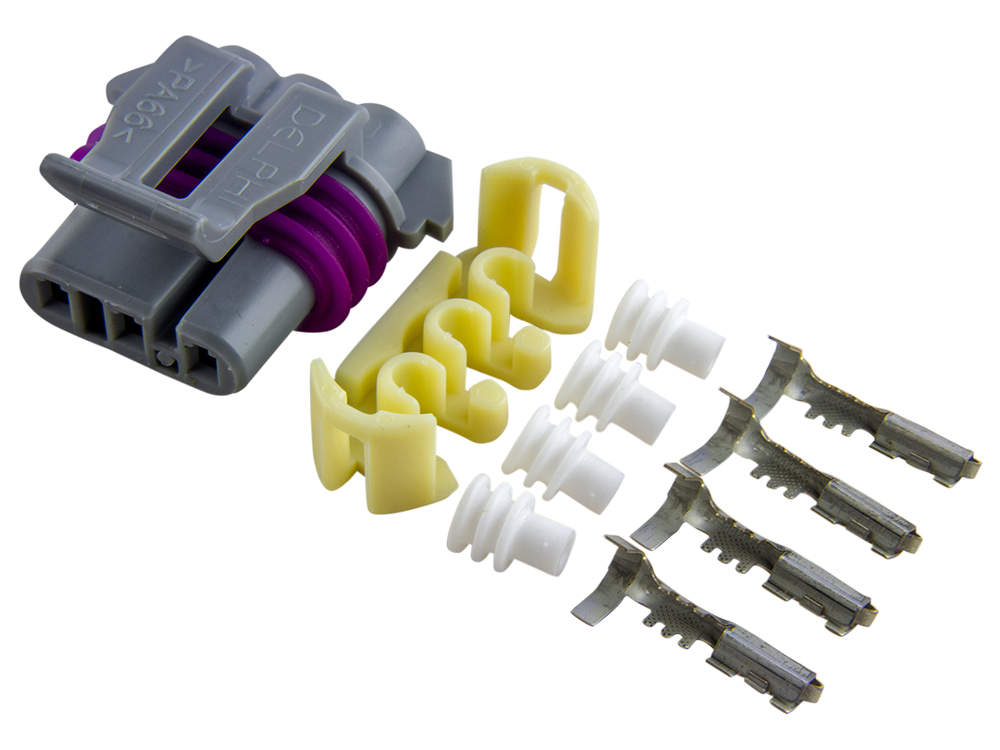

Connector Kit for GM LS-Series 58x Crankshaft Position Sensor (CKP) Delphi Metri-Pack 150

Parts to build your own connector assembly

$7.50

Part #: 100-01002

Attributes

  • OE Manufacturer: GM
  • Sensor Type: CRANKSHAFT POSITION (CKP)
  • Connector Cavities: 3

Dimensions

  • Weight: 5 Ounces

DESCRIPTION:
Genuine Delphi (GM Original Equipment Manufacturer - OEM) 3 way Metri-Pack connector kit for GM Gen IV LS-Series 58x Crankshaft Position Sensor (CKP). Used exclusively with all 58x LS-Series engines.
CONNECTOR CAVITY DESIGNATIONS:
CAVITYFUNCTION
A CKP SENSOR SIGNAL
B SENSOR GROUND
C SENSOR POWER (5V)

This connector is used in the following assemblies:

Part # Description Min Qty Price Qty
100 00321 100-00321 Crankshaft Position Sensor Connector Pigtail 58x for Gen IV 58x LS-Series – $12.50

Tools

Part # Description Min Qty Price Qty
624 000 3 624 000 3 RT Rennsteig Crimp System Tool PEW 12 Hand Tool w/ black burnished finish (crimp die sets sold separately) 1 $133.90
GeneralDieSetImage 624 1527 3 012 RT Rennsteig Crimp Die Set 624 1527 3 012 RT CRIMP DIE SET for Female Metri-Pack 150 Tin Plated Terminal, Cable Range 0.50 - 1.00 mm2 – $350.34
12094429 680-12094429 Rennsteig Terminal Removal Tool (compare to Delphi 12094429) for GT 150/280 and Metri-Pack 150/280/630 Terminals and More 1 $24.57

Replacement Parts

Part # Description Min Qty Price Qty
100 00045 100-00045 Aptiv (Delphi) 3 Way Medium Gray Metri-Pack 150 Sealed Female Connector – $6.00
100 00257 100-00257 Delphi 3 Way WHITE Metri-Pack 150 TPA fits many 3 cavity connectors – $0.75
100 00132 100-00132 Aptiv (Delphi) Metri-Pack 150 Female Sealed Tin (Sn) 20-16 AWG Terminal 10 $0.27
100 00194 100-00194 Delphi Metri-Pack 150 Cable Seal WHITE for Cable Diameters 2.15-1.60mm 10 $0.27
