Connector Kit for GM Intake Air Temperature Sensor (IAT) Delphi GT 150 3.5mm
Parts to build your own connector assembly
Part #: 100-01098
Attributes
- OE Manufacturer: GM
- Sensor Type: INTAKE AIR TEMPERATURE (IAT)
- Connector Cavities: 2
Dimensions
- Weight: 5 Ounces
DESCRIPTION:

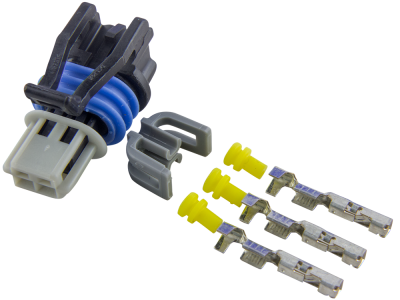

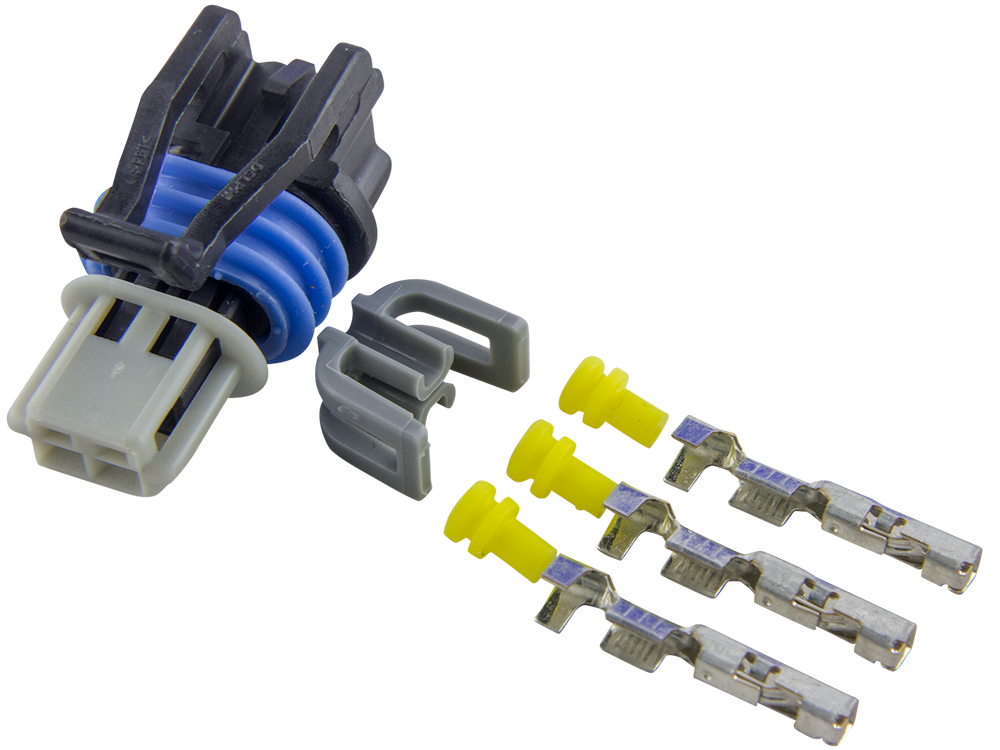

Genuine Delphi (GM Original Equipment Manufacturer - OEM) 2 way GT 150 3.5mm connector kit for GM Intake Air Temperature Sensor (IAT). Used with many production automotive engines.CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | FUNCTION |
|---|---|
| A | SENSOR GROUND |
| B | IAT SENSOR SIGNAL |
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00481 | LS1 IAT Connector Pigtail | – | $8.00 |
Tools
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
110-00036 | Delphi Intake Air Temperature IAT Sensor 12160244 for TPI LT1 LS1 LS6 LS-Series Engines | – | $15.00 | |
|
110-00040 | Intake Air Temperature Sensor Foam Padded w/ Clip Style Mount | – | $15.00 | |
|
110-00080 | ACDelco Intake Air Temperature (IAT) Sensor 213-190 for many GM engines with 3/8-18 NPT threads | – | $36.50 |
Replacement Parts
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00448 | Aptiv (Delphi) 2 Way Black GT 150 3.5mm Centerline Sealed Female Connector | – | $6.75 | |
|
100-00237 | Delphi 2 Way GRAY GT 150 TPA | – | $0.80 | |
|
100-00127 | Aptiv (Delphi) GT 150 3.5mm Centerline Female Sealed Tin (Sn) 18 AWG Terminal | 10 | $0.30 | |
|
100-00629 | Delphi GT 150 3.5mm Cable Seal YELLOW for Cable Diameters 2.10-1.70mm | 10 | $0.30 |
