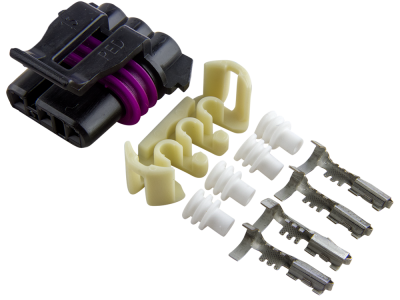

Connector Kit for GM Gen III LS-Series Camshaft Position Sensor (CMP) Delphi Metri-Pack 150
Parts to build your own connector assembly
Part #: 100-01105
Attributes
- OE Manufacturer: GM
- Sensor Type: CAMSHAFT POSITION (CMP)
- Connector Cavities: 3
Dimensions
- Weight: 5 Ounces
DESCRIPTION:
Genuine Delphi (GM Original Equipment Manufacturer - OEM) 3 way Metri-Pack connector kit for GM Gen III LS-Series Camshaft Position Sensor (CMP). Used exclusively with all 1997-newer LS-Series engines with CMP sensor in the back of the engine.CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | FUNCTION |
|---|---|
| A | CMP SENSOR SIGNAL |
| B | SENSOR GROUND |
| C | SENSOR POWER (12V) |
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00315 | Camshaft Position Sensor Connector Pigtail for Gen III LS1 LS6 | – | $12.00 |
Tools
Replacement Parts
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00041 | Aptiv (Delphi) 3 Way Black Metri-Pack 150 Sealed Female Connector | – | $5.75 | |
|
100-00257 | Delphi 3 Way WHITE Metri-Pack 150 TPA fits many 3 cavity connectors | – | $0.75 | |
|
100-00132 | Aptiv (Delphi) Metri-Pack 150 Female Sealed Tin (Sn) 20-16 AWG Terminal | 10 | $0.27 | |
|
100-00194 | Delphi Metri-Pack 150 Cable Seal WHITE for Cable Diameters 2.15-1.60mm | 10 | $0.27 |
