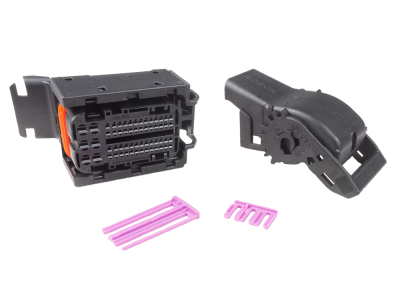

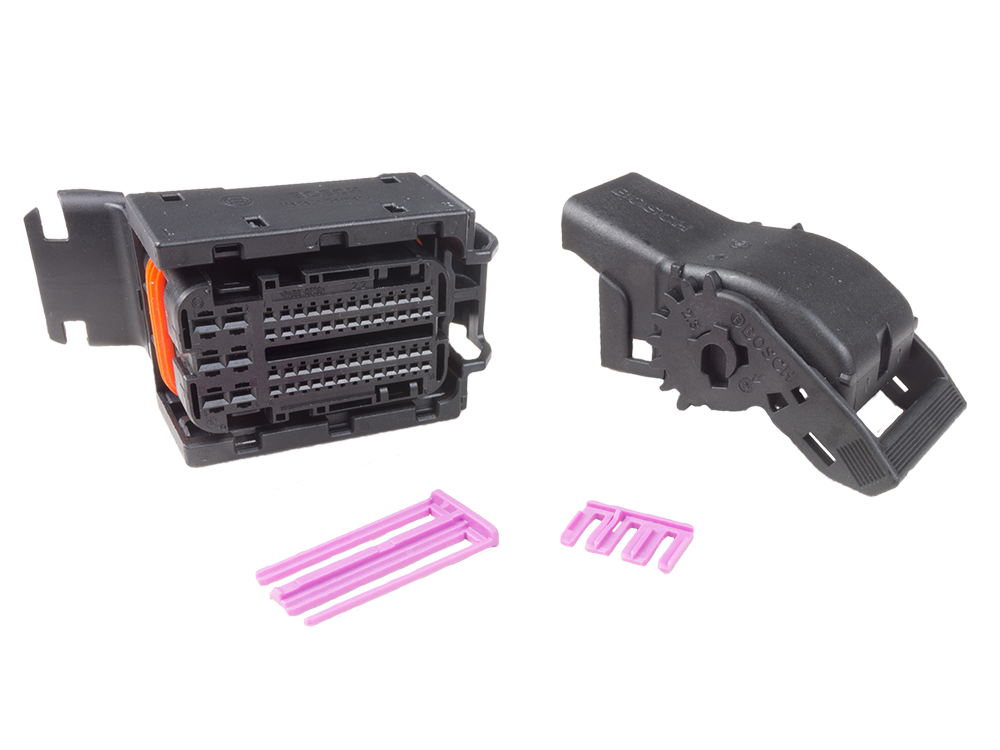

Bosch 58 Way Black 1.2 and 2.8 Sealed Female Connector Assembly
for Bosch ECU Header
Part #: 100-00666
Attributes
- COLOR: BLACK
- CAVITY COUNT: 58
- SEALED: SEALED
- MANUFACTURER: BOSCH
- FAMILY:
- SERIES: ECU
Dimensions
- Weight: 5 Ounces
This connector is known to be used with the Bosch LBZ/LMM ECU, Bosch E69 ECU, and Bosch E77 ECU. Both secondary lock and dress cover are included. Terminals are sold separately.
Dress Cover
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-01294 | Bosch 58 Way Black Dress Cover Left Wire Exit | – | $17.50 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-01295 | Bosch 52 Way Purple Comb Secondary Lock | – | $3.50 | |
|
100-01296 | Bosch 6 Way Purple Comb Secondary Lock | – | $3.50 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00656 | Bosch Matrix 1.2 Female Unsealed Tin (Sn) 22-20 AWG Terminal | 5 | $0.85 | |
|
100-00778 | Bosch Matrix 1.2 Female Unsealed Silver (Ag) 18-16 AWG Terminal | 5 | $0.50 | |
|
100-00122 | Bosch BDK 2.8 Female Sealed Tin (Sn) 20-18 AWG Terminal | 5 | $0.48 | |
|
100-01048 | Bosch BDK 2.8 Female Sealed Tin (Sn) 16-14 AWG Terminal | – | $0.85 |
Cable Seals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00882 | Bosch BDK 2.8 Cable Seal WHITE for Cable Diameters 3.00-2.20mm | 2 | $0.90 | |
|
100-00883 | Bosch BDK 2.8 Cable Seal BLUE for Cable Diameters 2.10-1.20mm | 2 | $0.90 |
Plugs
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00884 | Bosch BDK Cavity Plug | 2 | $0.90 |
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00961 | Aptiv (Delphi) 58 Way Black BTS 2.8 OCS 1.2 Sealed Female Gray Bottom Connector | – | $25.00 |
Replacement Parts
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-01293 | Bosch 58 Way Black Sealed Female Connector Code A Left Wire Exit | – | $75.00 | |
|
|
100-01294 | Bosch 58 Way Black Dress Cover Left Wire Exit | – | $17.50 | |
|
|
100-01295 | Bosch 52 Way Purple Comb Secondary Lock | – | $3.50 | |
|
|
100-01296 | Bosch 6 Way Purple Comb Secondary Lock | – | $3.50 |
