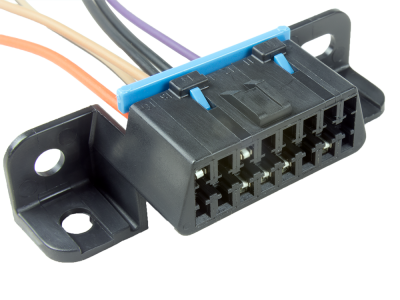

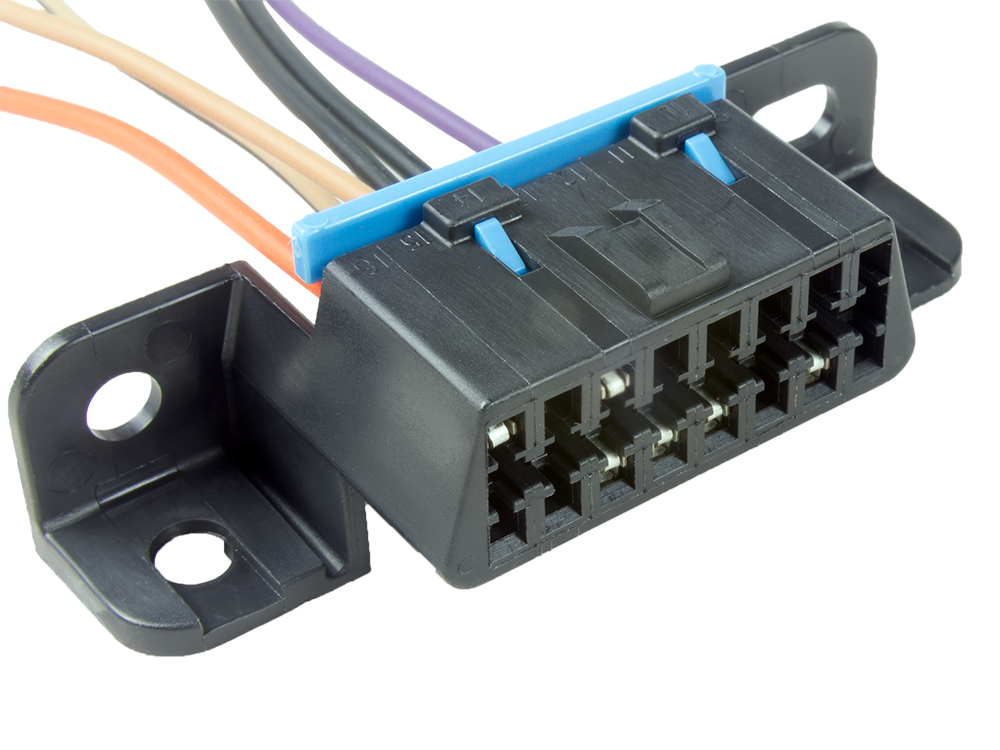

OBD-II Diagnostic Pigtail (4FT)
for both early class 2 and late CAN bus vehicles
Part #: 100-00458-4FT
Attributes
- Engine Type:
- Wire Count:
- Connector Color:
- Application:
Dimensions
- Weight: 2 Ounces
This is the 4ft version of our 100-00458 pigtail and is used with both early Class 2 and late CAN bus vehicles. It includes Class 2 serial data wire and the wires for CAN bus systems.
| BRAND CROSS REFERENCES | |
|---|---|
| BRAND | PART NUMBER |
| Airtex/Wells | 1P1474 |
| CONNECTOR PINOUT DETAILS | ||
|---|---|---|
| PIN | WIRE | FUNCTION |
| 2 | 20ga PPL | CLASS 2 SERIAL DATA |
| 4 | 18ga BLK | GROUND |
| 5 | 18ga BLK | GROUND |
| 6 | 20ga TAN/BLK | CAN (+) |
| 14 | 20ga TAN | CAN (-) |
| 16 | 16ga ORN | BATTERY (12V) |
Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00068 | Aptiv (Delphi) 16 Way Black Metri-Pack 150 Unsealed Female Connector | – | $7.50 |
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00458 | OBD-II Diagnostic Pigtail for both early class 2 and late CAN bus vehicles | – | $18.00 |
