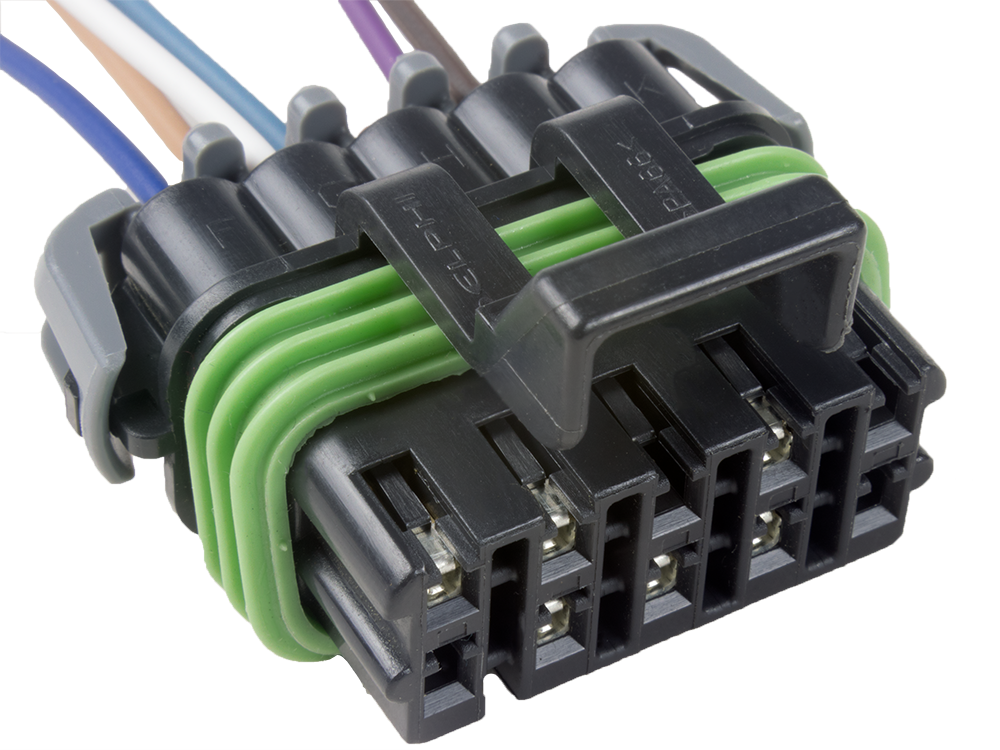

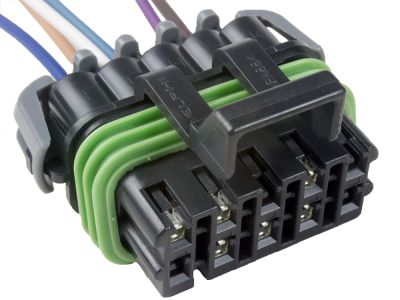

2005-2007 Throttle Actuator Control Module (TAC) Connector Pigtail
for GM 2005-2007 LS-Series Truck Van SUV
Part #: 100-00994
Dimensions
- Weight: 5 Ounces
DESCRIPTION:
Genuine Delphi (GM Original Equipment Manufacturer - OEM) 10 wire Metri-Pack 150 connector replacement pigtail for Throttle Actuator Control Module (TAC) within 2005-2007 GM LS-Series Truck, Van, and SUV engine harnesses. This pigtail is for the Accelerator Pedal Position Sensor (APP) connection side of the TAC module. Assembled with 12 inch lengths of automotive TXL wire.CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | WIRE SIZE | WIRE COLOR | FUNCTION |
|---|---|---|---|
| A | - | - | NOT USED |
| B | 20 GA | PPL | LOW REFERENCE |
| C | 20 GA | LT BLU | APP SENSOR 2 SIGNAL |
| D | 20 GA | TAN | 5V REFERENCE |
| E | - | - | NOT USED |
| F | 20 GA | DK BLU | APP SENSOR 1 SIGNAL |
| G | 20 GA | WHT/BLK | 5V REFERENCE |
| H | - | - | NOT USED |
| J | 20 GA | BRN | LOW REFERENCE |
| K | - | - | NOT USED |
GUARANTEED TO MEET OR EXCEED QUALITY AND FITMENT OF:
| BRAND | PART NUMBERS |
|---|---|
| ACDELCO | PT1105 |
| GM | 15305916 |
| STANDARD MOTOR PRODUCTS | S1207 |
| AIRTEX / WELLS | 1P1584 |
QUALITY STATEMENT:
EFI Connection uses German engineered tools by RENNSTEIG to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal.Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00995 | Aptiv (Delphi) 10 Way Black GT 150 Sealed Female Connector | – | $8.50 |
