1997-2005 Throttle Actuator Control Module (TAC) Connector Pigtail

for GM 1997-2004 LS1 LS6 Corvette and 2004-2005 LS6 Cadillac CTS-V

$18.00/ea
QtyPrice/ea
1$18.00
5$13.50
25$10.80

Part #: 100-00338

Attributes

  • Engine Type: LS (24X)
  • Wire Count: 9
  • Connector Color: BLACK
  • Application: ACCELERATOR PEDAL, MODULE

Dimensions

  • Weight: 1 Ounce

DESCRIPTION:

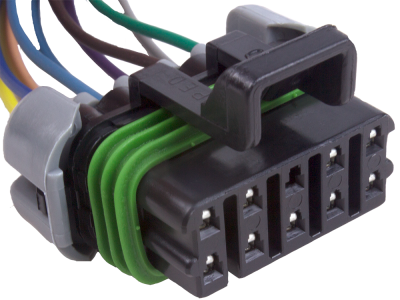

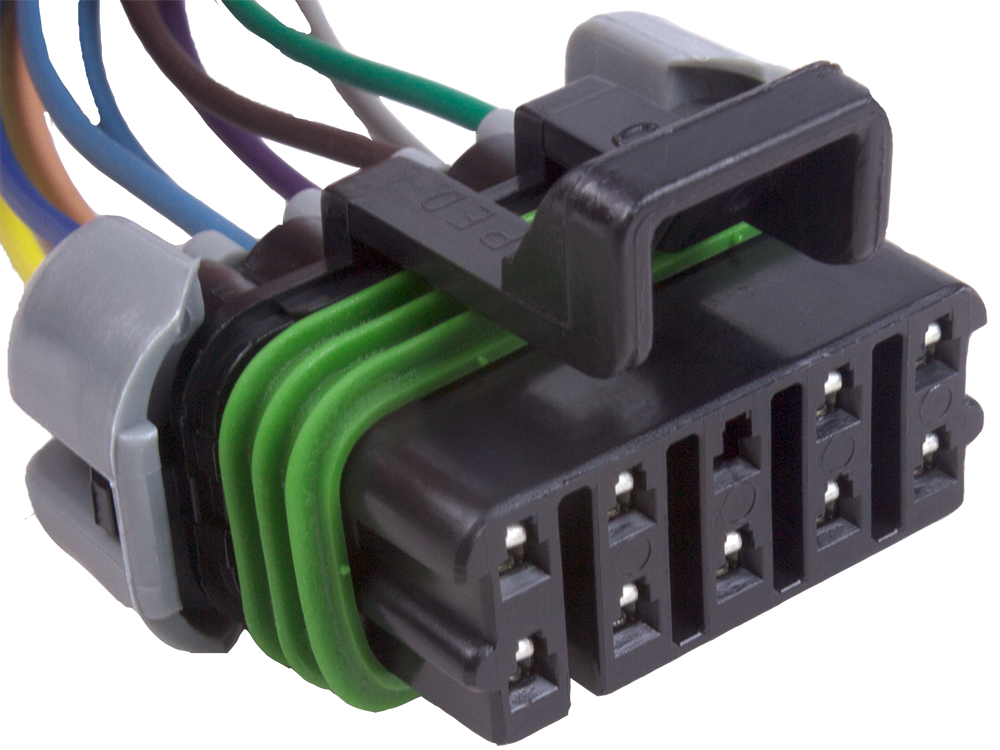

Genuine Delphi (GM Original Equipment Manufacturer - OEM) 10 wire Metri-Pack 150 connector replacement pigtail for Throttle Actuator Control Module (TAC) within 1997-2004 LS1 LS6 Corvette and 2004-2005 LS6 Cadillac CTS-V engine harnesses. This pigtail is for the Accelerator Pedal Position Sensor (APP) connection side of the TAC module. Assembled with 12 inch lengths of automotive TXL wire.
CONNECTOR CAVITY DESIGNATIONS:
CAVITYWIRE SIZEWIRE COLORFUNCTION
A 20 GA GRY LOW REFERENCE
B 20 GA PPL LOW REFERENCE
C 20 GA LT BLU APP SENSOR 2 SIGNAL
D 20 GA TAN 5V REFERENCE
E 20 GA YEL/BLK 5V REFERENCE
F 20 GA DK BLU APP SENSOR 1 SIGNAL
G 20 GA LT BLU 5V REFERENCE
H - - NOT USED
J 20 GA BRN LOW REFERENCE
K 20 GA DK GRN APP SENSOR 3 SIGNAL
GUARANTEED TO MEET OR EXCEED QUALITY AND FITMENT OF:
BRANDPART NUMBERS
ACDELCO PT588
GM 12125676
AIRTEX / WELLS 1P1665
QUALITY STATEMENT:
EFI Connection uses German engineered tools by RENNSTEIG to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal.

Connectors

Part # Description Min Qty Price Qty
100 00065 100-00065 Aptiv (Delphi) 10 Way Black Metri-Pack 150 Sealed Female Connector – $7.00

Associated Items

Part # Description Min Qty Price Qty
110 00019 110-00019 GM Throttle Actuator Control Module TAC 12578953 for LS1 LS6 Corvette CTS-V – $500.00

Out of stock
