Throttle Position Sensor TPS Connector Pigtail TPI TBI MPFI
$7.25
Skip to product information

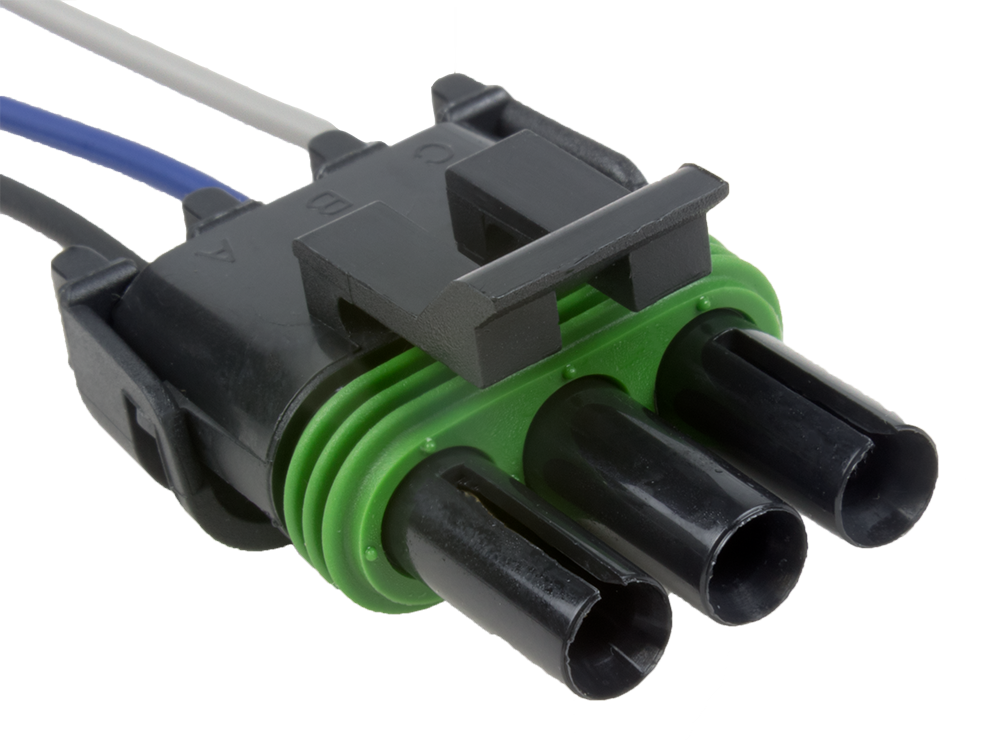

Throttle Position Sensor TPS Connector Pigtail TPI TBI MPFI
for GM TBI TPI and many other GM TPS sensors
100-00269
$7.25
Attributes
- Application: THROTTLE BODY
- Engine Type: TBI,TPI
- Wire Count: 3
- Connector Color: Black
Dimensions:
- Weight: 19.0 Grams
DESCRIPTION:
Genuine Delphi (GM Original Equipment Manufacturer - OEM) 3 wire Weather-Pack connector replacement pigtail for many GM Throttle Position Sensors (TPS) within 1976-newer engine harnesses. Commonly used with GM Throttle Body Injection (TBI), Tuned Port Injection (TPI), and other Multi-Port Fuel Injection (MPFI) engines. Assembled with 12 inch lengths of automotive TXL wire.CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | WIRE SIZE | WIRE COLOR | FUNCTION |
|---|---|---|---|
| A | 18 GA | BLK | LOW REFERENCE |
| B | 18 GA | DK BLU | SENSOR SIGNAL |
| C | 18 GA | GRY | 5V REFERENCE |
GUARANTEED TO MEET OR EXCEED QUALITY AND FITMENT OF:
| BRAND | PART NUMBERS |
|---|---|
| ACDELCO | PT2303, PT430, PT195 |
| GM | 88862222, 12116257, 12101923 |
| STANDARD MOTOR PRODUCTS | S564, HP4460 |
| AIRTEX / WELLS | 1P1064 |
| DORMAN | 85186 |
QUALITY STATEMENT:
EFI Connection uses German engineered tools by RENNSTEIG to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal.
