T43 6L90E 6L80E TCM Transmission Connector Pigtail
$51.80
Skip to product information
This transmission can be found in many common vehicles such as Cadillac Escalade, CTS, STS, XLR; Chevy Silverado, Camaro, Corvette, Tahoe, Suburban; GMC Sierra; and Pontiac G8.
Assembled with 18-inch lengths of automotive TXL wire.
T43 6L90E 6L80E TCM Transmission Connector Pigtail
100-02079
$51.80
Attributes
Dimensions:
- Weight: 5.0 Ounces
DESCRIPTION:

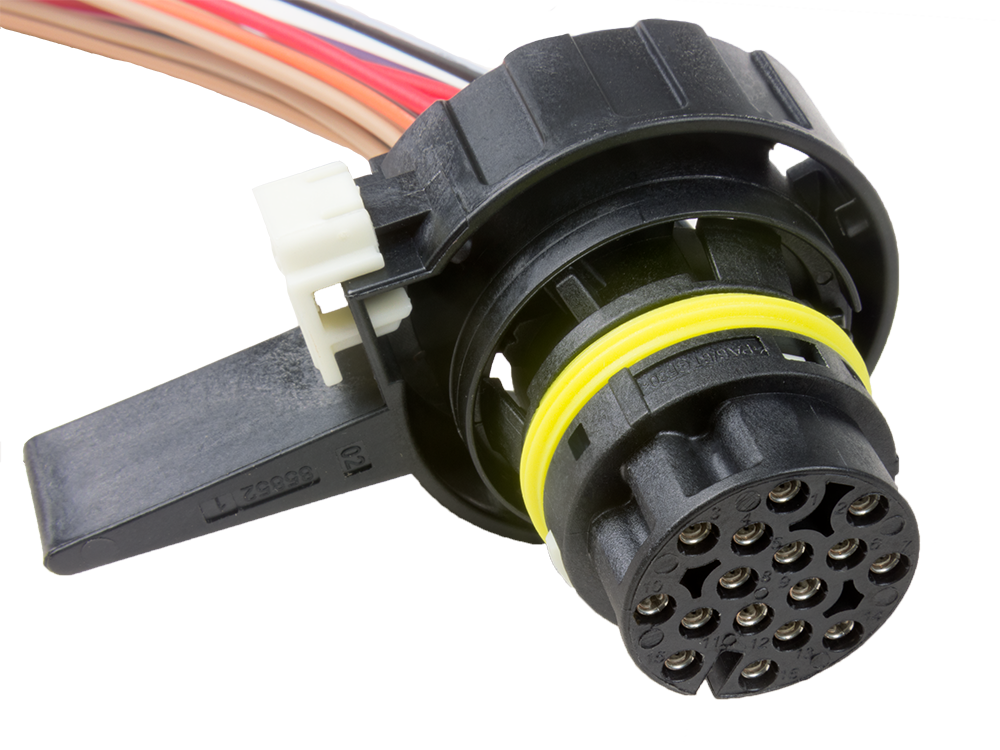

Genuine Kostal (GM Original Equipment Manufacturer - OEM) connector replacement pigtail for many GM 6-speed automatic transmissions from 2007-newer engine harnesses. Commonly used with GM Vortec LS-Series, LS1, LS2, LS3, and LSA engines.This transmission can be found in many common vehicles such as Cadillac Escalade, CTS, STS, XLR; Chevy Silverado, Camaro, Corvette, Tahoe, Suburban; GMC Sierra; and Pontiac G8.
Assembled with 18-inch lengths of automotive TXL wire.
CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | WIRE SIZE | WIRE COLOR | FUNCTION |
|---|---|---|---|
| 1 | 18 GA | RED/WHT | 12V BATTERY |
| 2 | 18 GA | BLK/WHT | GROUND |
| 3 | 22 GA | ORN/BLK | PARK/NEUTRAL SIGNAL |
| 4 | 18 GA | RED/WHT | 12V BATTERY |
| 5 | 18 GA | BLK/WHT | GROUND |
| 6 | 22 GA | WHT | STOP LAMP SWITCH SIGNAL |
| 7 | 22 GA | PPL | TAP UP/DOWN SIGNAL |
| 8 | 20 GA | TAN | CAN- (120 Ω APPLIED) |
| 9 | 20 GA | YEL | 12V ACCESSORY VOLTAGE |
| 10 | 20 GA | TAN/BLK | CAN+ |
| 11 | 20 GA | TAN | CAN- |
| 12 | 20 GA | PNK | 12V SWITCHED IGNITION |
| 13 | 20 GA | TAN | CAN- |
| 14 | 20 GA | TAN/BLK | CAN+ |
| 15 | 20 GA | TAN/BLK | CAN+ (120 Ω APPLIED) |
| 16 | 20 GA | ORN/BLK | REPLICATED TOS SIGNAL |
QUALITY STATEMENT:
EFI Connection uses KOSTAL tooling to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal in this connector.
