Rennsteig Crimp Die Set 624 1685 3 012 RT
CRIMP DIE SET for Sumitomo TS Series 0.64 mm (025) terminals
624 1685 3 012 RT
$306.06
Attributes
Dimensions:
- Weight: 1.0 Pound

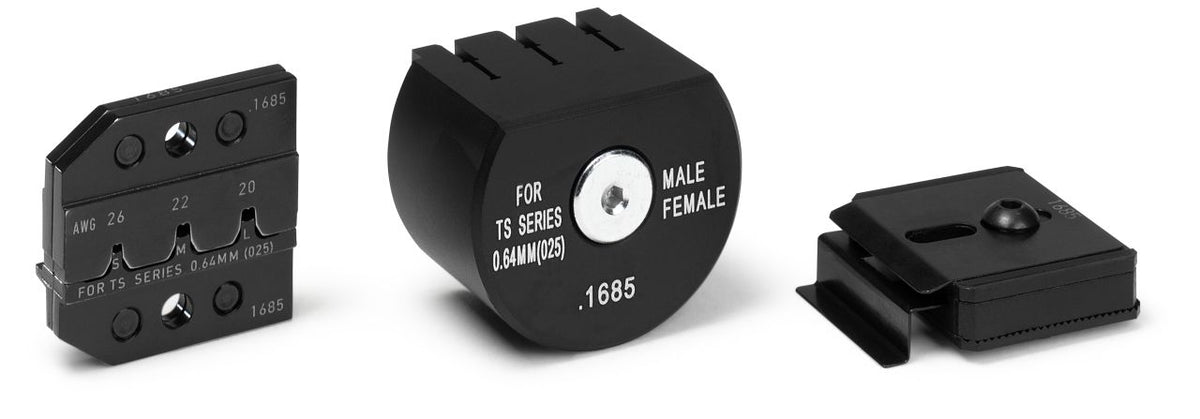

Complete box with 1 die set, 1 locator, 1 wire stop, spare parts and reference data sheet for crimping of Sumitomo TS Series 0.64 mm (025) terminals, Range AWG 26/22/20.
Terminal technical info:
| Terminal P/N | Version | Plating | Gender | Range AWG |
|---|---|---|---|---|
| 8230-4878 | S | Sn Tin | Male | 26 |
| 8240-0182 | S | Sn Tin | Female | 26 |
| 8230-5136 | S | Au Gold | Male | 26 |
| 8240-0338 | S | Au Gold | Female | 26 |
| 8100-3622 | M | Sn Tin | Male | 22 |
| 8100-3624 | Sn Tin | M | Female | 22 |
| 8100-3626 | M | Au Gold | Male | 22 |
| 8100-3628 | M | Au Gold | Female | 22 |
| 8100-3623 | L | Sn Tin | Male | 20 |
| 8100-3625 | L | Sn Tin | Female | 20 |
| 8100-3627 | L | Au Gold | Male | 20 |
| 8100-3629 | L | Au Gold | Female | 20 |
