1997-2005 Throttle Actuator Control Module (TAC) Connector Pigtail
$18.00
Skip to product information
1997-2005 Throttle Actuator Control Module (TAC) Connector Pigtail
for GM 1997-2004 LS1 LS6 Corvette and 2004-2005 LS6 Cadillac CTS-V
100-00338
$18.00
Attributes
- Application: ACCELERATOR PEDAL,MODULE
- Engine Type: LS (24X)
- Wire Count: 9
- Connector Color: Black
Dimensions:
- Weight: 1.0 Ounce
DESCRIPTION:

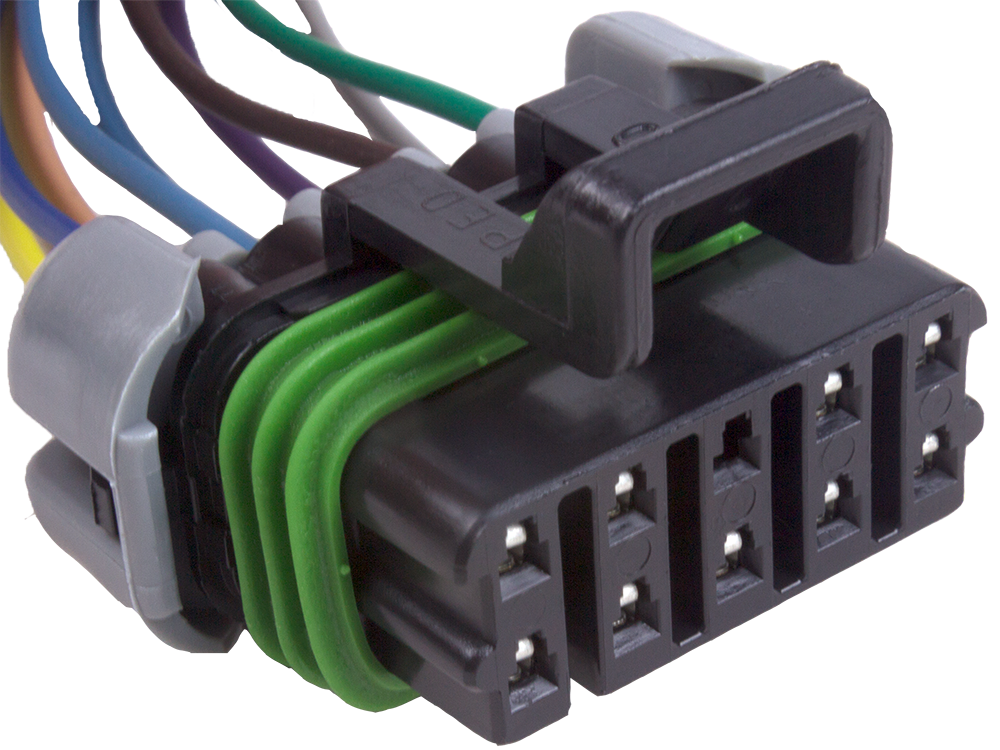

Genuine Delphi (GM Original Equipment Manufacturer - OEM) 10 wire Metri-Pack 150 connector replacement pigtail for Throttle Actuator Control Module (TAC) within 1997-2004 LS1 LS6 Corvette and 2004-2005 LS6 Cadillac CTS-V engine harnesses. This pigtail is for the Accelerator Pedal Position Sensor (APP) connection side of the TAC module. Assembled with 12 inch lengths of automotive TXL wire.CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | WIRE SIZE | WIRE COLOR | FUNCTION |
|---|---|---|---|
| A | 20 GA | GRY | LOW REFERENCE |
| B | 20 GA | PPL | LOW REFERENCE |
| C | 20 GA | LT BLU | APP SENSOR 2 SIGNAL |
| D | 20 GA | TAN | 5V REFERENCE |
| E | 20 GA | YEL/BLK | 5V REFERENCE |
| F | 20 GA | DK BLU | APP SENSOR 1 SIGNAL |
| G | 20 GA | LT BLU | 5V REFERENCE |
| H | - | - | NOT USED |
| J | 20 GA | BRN | LOW REFERENCE |
| K | 20 GA | DK GRN | APP SENSOR 3 SIGNAL |
GUARANTEED TO MEET OR EXCEED QUALITY AND FITMENT OF:
| BRAND | PART NUMBERS |
|---|---|
| ACDELCO | PT588 |
| GM | 12125676 |
| AIRTEX / WELLS | 1P1665 |
QUALITY STATEMENT:
EFI Connection uses German engineered tools by RENNSTEIG to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal.Associated Items
