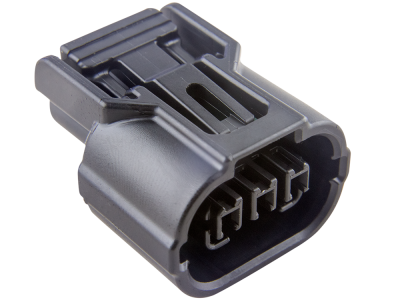

Sumitomo 3 Way Black HX 040 Sealed Female Connector
Part #: 100-00737
Attributes
- COLOR: BLACK
- CAVITY COUNT: 3
- SEALED: SEALED
- MANUFACTURER: SUMITOMO
- FAMILY: HX
- SERIES: 040
Dimensions
- Weight: 3.71 Grams
This connector is used with crankshaft position sensor GM P/N 12595966 (ACDelco 213-3906). The gray secondary lock, 100-00880, is required during assembly.
This connector is used in the following assemblies:
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00738 | Crankshaft Position Sensor Connector Pigtail for GM# 12595966 sensor | – | $45.00 | |
|
100-00810 | Crankshaft Position Sensor Connector Pigtail for use with Gen III PCM and GM# 12595966 sensor | – | $50.00 |
Secondary Locks
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00880 | Sumitomo 3 Way GRAY HX 040 TPA required for 100-00737 connector | – | $1.75 |
Terminals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00736 | Sumitomo HX 040 Female Sealed Tin (Sn) 22-20 AWG Terminal | 10 | $2.50 | |
|
100-00876 | Sumitomo HX 040 Female Sealed Tin (Sn) 18-16 AWG Terminal | 3 | $0.95 |
Cable Seals
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00879 | Sumitomo HX 040 Cable Seal LIGHT GREEN for 22-20ga TXL Wire | 3 | $0.80 |
