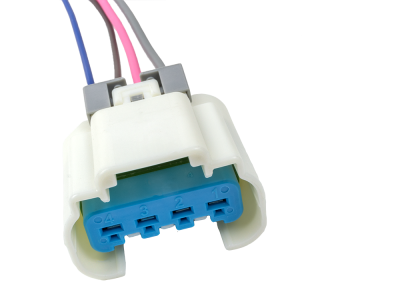

Fuel Pump Module Pigtail for GM# 19303293 ZL1 LS3 CTS-V
Part #: 100-01087
Attributes
- Engine Type: GEN IV LS-SERIES
- Wire Count: 4
- Connector Color: WHITE, NATURAL, CREAM
- Application: FUEL SYSTEM
Dimensions
- Weight: 3 Ounces
DESCRIPTION:
Genuine Delphi (GM Original Equipment Manufacturer - OEM) 4 wire GT Series connector replacement pigtail for GM fuel pump module. Commonly used with fuel pump module GM# 19303293 with ZL1, CTS-V, and LS3. Assembled with 3ft lengths of automotive TXL wire.CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | WIRE SIZE | WIRE COLOR | FUNCTION |
|---|---|---|---|
| 1 | 14 GA | GRY | FUEL PUMP SUPPLY VOLTAGE |
| 2 | 14 GA | PNK | FUEL PUMP GROUND |
| 3 | 18 GA | BRN/WHT | FUEL LEVEL SENSOR GROUND |
| 4 | 18 GA | DK BLU | FUEL LEVEL SENSOR SIGNAL |
QUALITY STATEMENT:
EFI Connection uses German engineered tools by RENNSTEIG to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal.Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00661 | Aptiv (Delphi) 4 Way Natural GT 280 Sealed Female Connector | – | $10.00 |
