Camshaft Position Sensor VVT Bypass Harness
to adapt a non-VVT engine wire harness
Part #: 100-00861
Attributes
- Application: IGNITION
- Engine Type: LS (24X), LS (58X)
Dimensions
- Weight: 1 Ounce

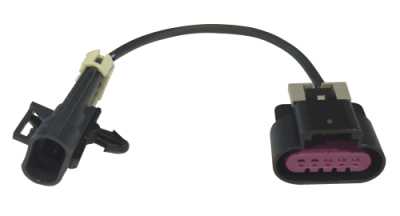

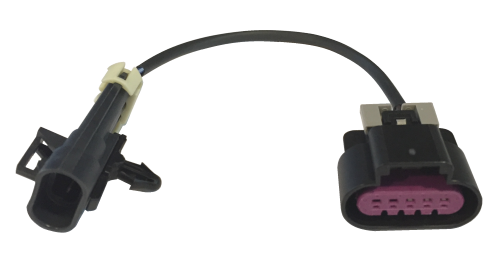

This harness is for use with cam phaser (VVT) equipped Gen IV LS-Series engines when using a non-VVT engine wire harness. For example, a 5.3L Gen IV LS-Series truck engine installed into an LS3 vehicle. This harness connects to the 5 cavity harness connector at the bottom of the engine timing cover and then to the 3 cavity engine wire harness. Commonly used with the MSD 6012 6LS-2 Ignition Controller wire harness for engines originally equipped with VVT. Harness length is roughly 9 inches.
Associated Items
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00042 | Aptiv (Delphi) 3 Way Black Metri-Pack 150 Sealed Female Connector | – | $6.75 | |
|
100-00410 | Aptiv (Delphi) 5 Way Black GT 150 Sealed Male Connector | – | $8.00 |
