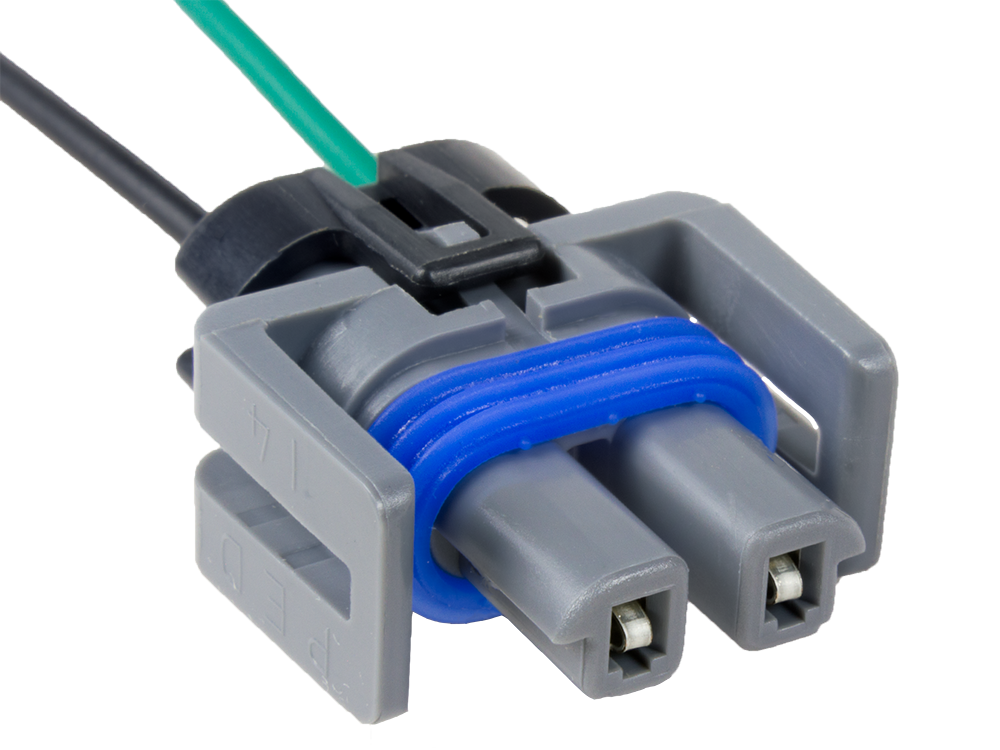

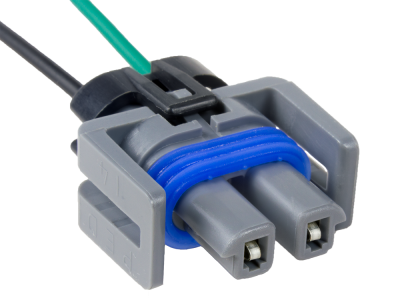

Air Conditioning A/C Compressor Clutch Coil Connector Pigtail with Diode
for GM many 1986-newer vehicles TBI TPI LT1 LT4 LS1 LS6 LS2 LS3
Part #: 100-00279
Attributes
- Engine Type: TBI, TPI
- Wire Count: 2
- Connector Color: GRAY
- Application: COOLING
Dimensions
- Weight: 17.34 Grams
This Air Conditioning A/C Compressor Clutch Coil Connector Pigtail with Diode is made with genuine Aptiv Metri-Pack 150 components. (GM Original Equipment Manufacturer - OEM) The diode is wired in for your convenience to prevent the current from cycling back when the clutch is turning off and on. This pigtail is used on many 1986-newer GM vehicles. This pigtail is 12 inches and made with automotive TXL wire.
CONNECTOR CAVITY DESIGNATIONS:
| CAVITY | WIRE SIZE | WIRE COLOR | FUNCTION |
|---|---|---|---|
| A | 20 AWG | DK GRN | 12V SWITCHED POWER |
| B | 20 AWG | BLK | GROUND |
GUARANTEED TO MEET OR EXCEED QUALITY AND FITMENT OF:
| BRAND | PART NUMBERS |
|---|---|
| ACDELCO | PT2311, PT209 |
| GM | 88862230, 12101937 |
| STANDARD MOTOR PRODUCTS | S588 |
QUALITY STATEMENT:
EFI Connection uses German engineered tools by RENNSTEIG to achieve proper crimp height and width, as specified by the terminal manufacturer, for each terminal.Connectors
| Part # | Description | Min Qty | Price | Qty | |
|---|---|---|---|---|---|
|
100-00350 | Aptiv (Delphi) 2 Way Medium Gray Metri-Pack 150 Sealed Female Connector | – | $8.00 |
